VM15 User Manual ECG Monitoring
108
corner of the thorax.
III. To put check electrode, follow the doctor’s instruction.
IV. Please refer to Figure 16-2.

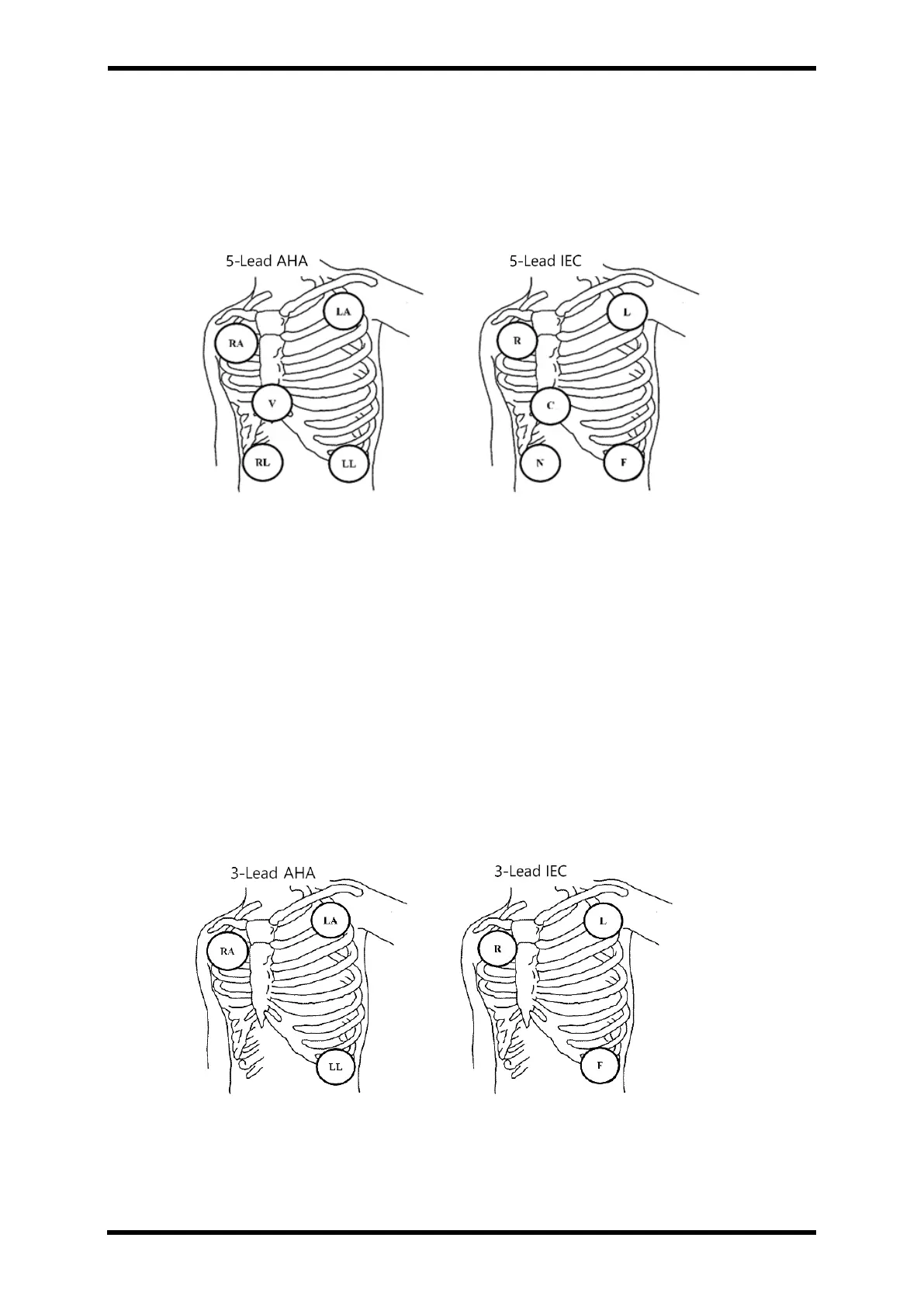

Figure 17-3. LEAD Electrode
Location of Electrode of Lead Cable.
I. No big difference between the using way of 3 Lead Cable and the using way of 5
Lead.
II. The Right arm electrode and left arm electrode should be attached as much as close
location of right and left collarbone.
III. Put left leg electrode to the non-developed muscles at the corner of the thorax.
IV. Please refer to Figure 16-3.
Figure 17-4. LEAD Electrode
