VOTEM VM15 - Display of CO2; CO2 Measuring Screen; CO 2 Numeric State Message Box

VM15 User Manual Printing (Option)
181
Display of CO2
CO2 Measuring Screen

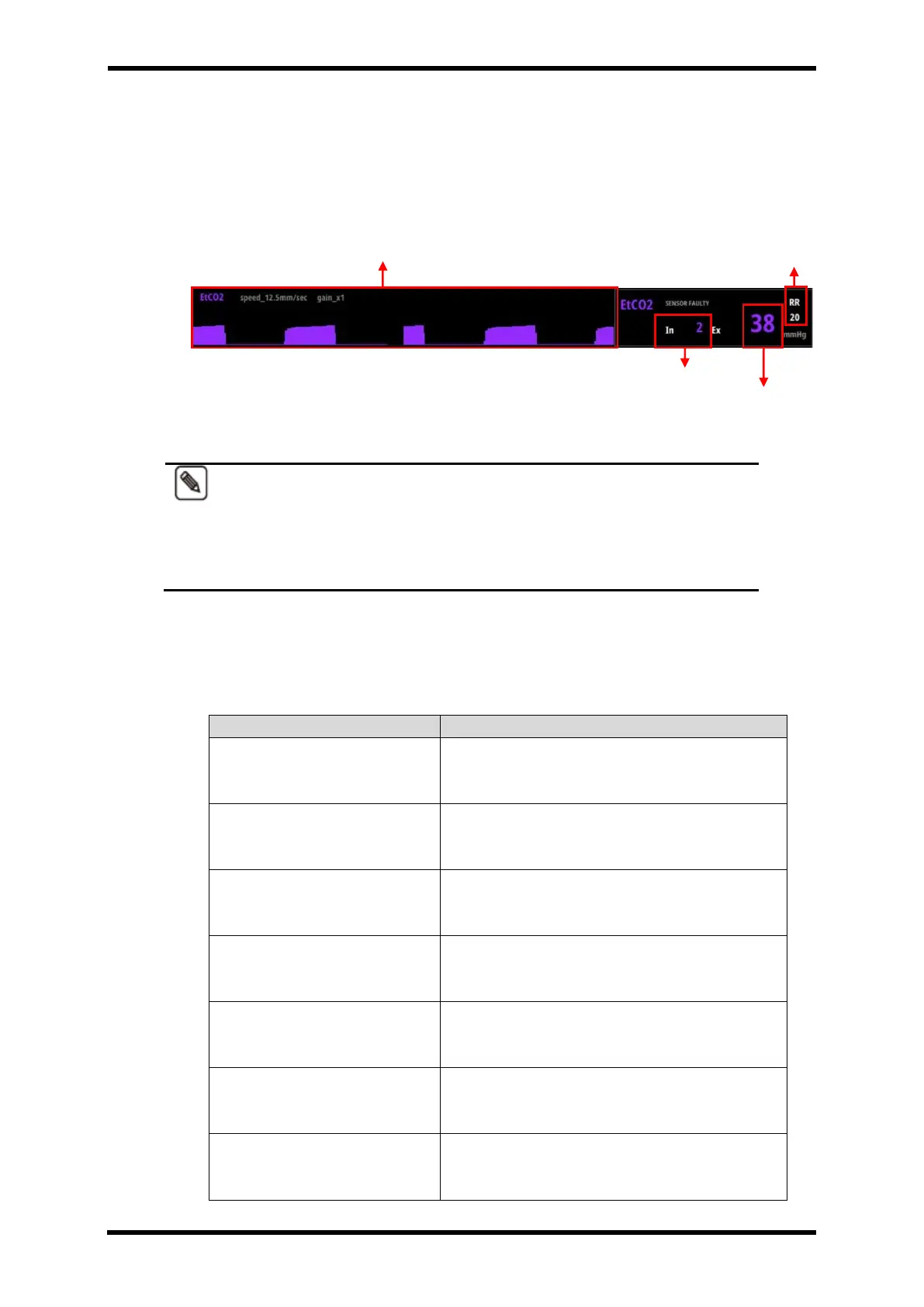

Figure 27-3. Displays - CO2
NOTE
Automatic change into EtCO2 respiration when measure EtCO2 . Display
the figures after calculating the breast impedance changes when
measurement stops.
Display EtCO2, FICO2 and respiration in 15 minutes after detecting the
proper respiratory movement.
CO
2
Numeric State Message Box
Table 27-1. CO2 State Message List
Message
Description
SENSOR WARM_UP
The status of operating when EtCO2 is
connected.
SAMPLE LINE DISCONNECT
Sample line is not connected. Sample line is
disconnected during the measurement process.
CHECK SAMPLEING LINE
The measured figure ( or pressure) is out of the
allowed range. The unstable connection of the
sample line. Misconnected status.
NO BREATHS DETECTED
Respiration is not detected. Sample line is
separated from the patient.
CHECK ADAPTER
Humidity or foreign bodies in sample line or
adapter.
ZERO IN PROGRESS
ZERO CALIBARATION is on processing.
ZERO REQUIR
ZERO CALIBRATION IS NECESSARY. PERFORM
THE ZERO CALIBRATION.
CO
2
Wave
Inspiration Co2 value
End-tidal Co2 value
RESP VALUE
