VM15 User Manual Description of Display and Symbols
30
Symbols
The following symbols describe the symbols inside/outside the VM15. Please check the
symbols before use.

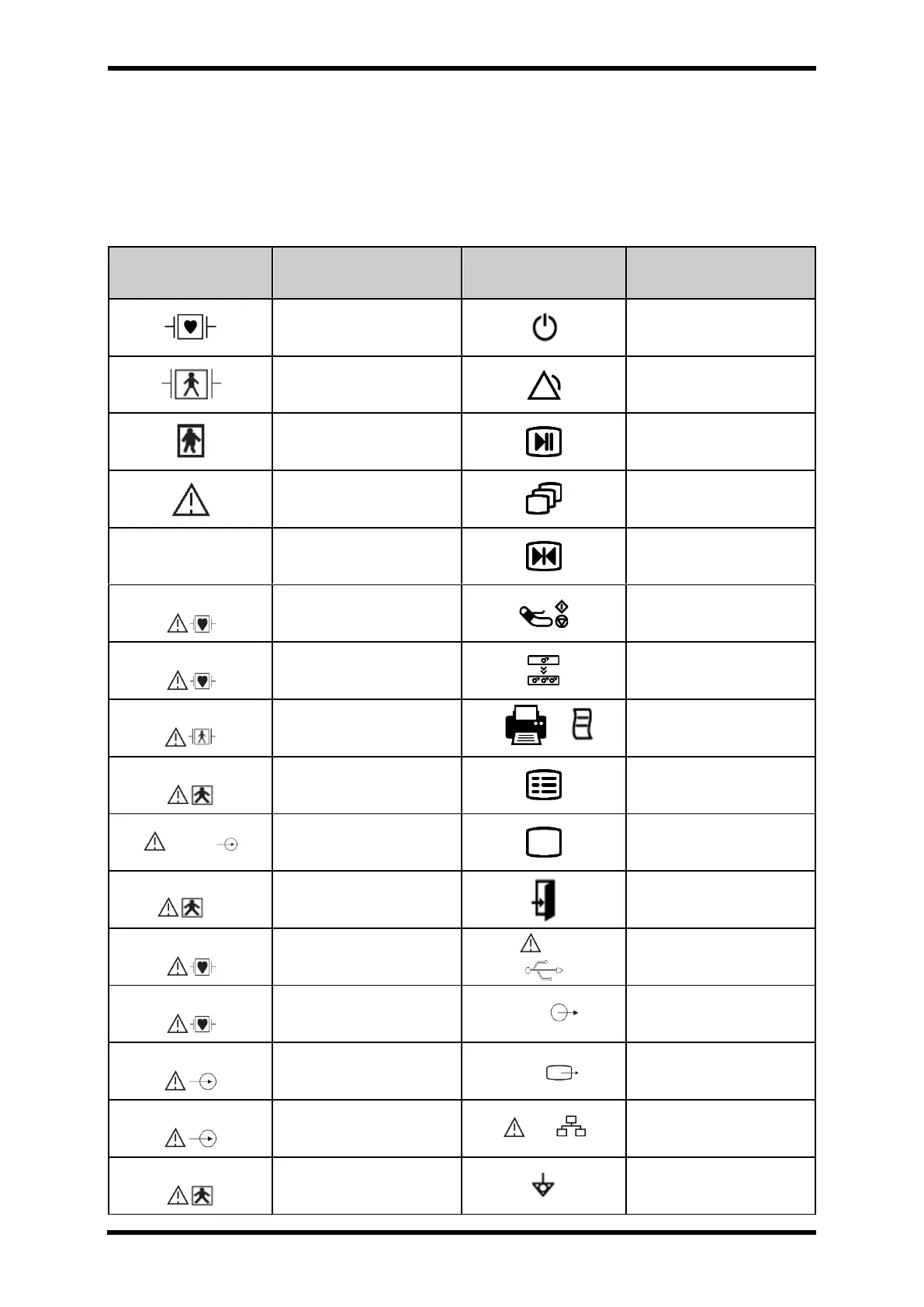

Table 6-2. Product Symblos
Symbols
Description
Symbols
Description
Defibrillation-Proof
Type CF Applied part
Power switch
Defibrillation-Proof
Type BF Applied part
Alarm Paused
Type BF Applied part
Manual Event
Waring or Cautions
(Refer to the manual)
Change screen
IPX
Waterproof rating
(Freeze)
Freeze the Wave
ECG
Electrocardiograph /
Respiration
NBP Start/Stop
EKG
12 Leads
Electrocardiograph
Option module display
select
SpO2
SpO2
,
(Printer)
Start Print
NIBP
Non-Invasive Blood
Pressure
SETUP
ECG OUT
ECG OUT
Return to Full Waves screen
T1 ~ T4
IPX7
Temperature Measurement
(Exit)
Initial Screen
IBP 1/2 ~ IBP 3/4
Invasive Blood Pressure
U-A
USB Port
CO
Cardiac Output
COM1
RS-232 communication
terminal
CO2
EtCO2 Module port
VGA
VGA OUT port
MULTI GAS
Multi-Gas Module port
LAN
LAN port
qCON
qCON index
Ground
