Description of ECG functions
When the user selects ECG Numeric at Numeric Area, ECG Menu is available.
When the user presses X, ECG Menu disappears.

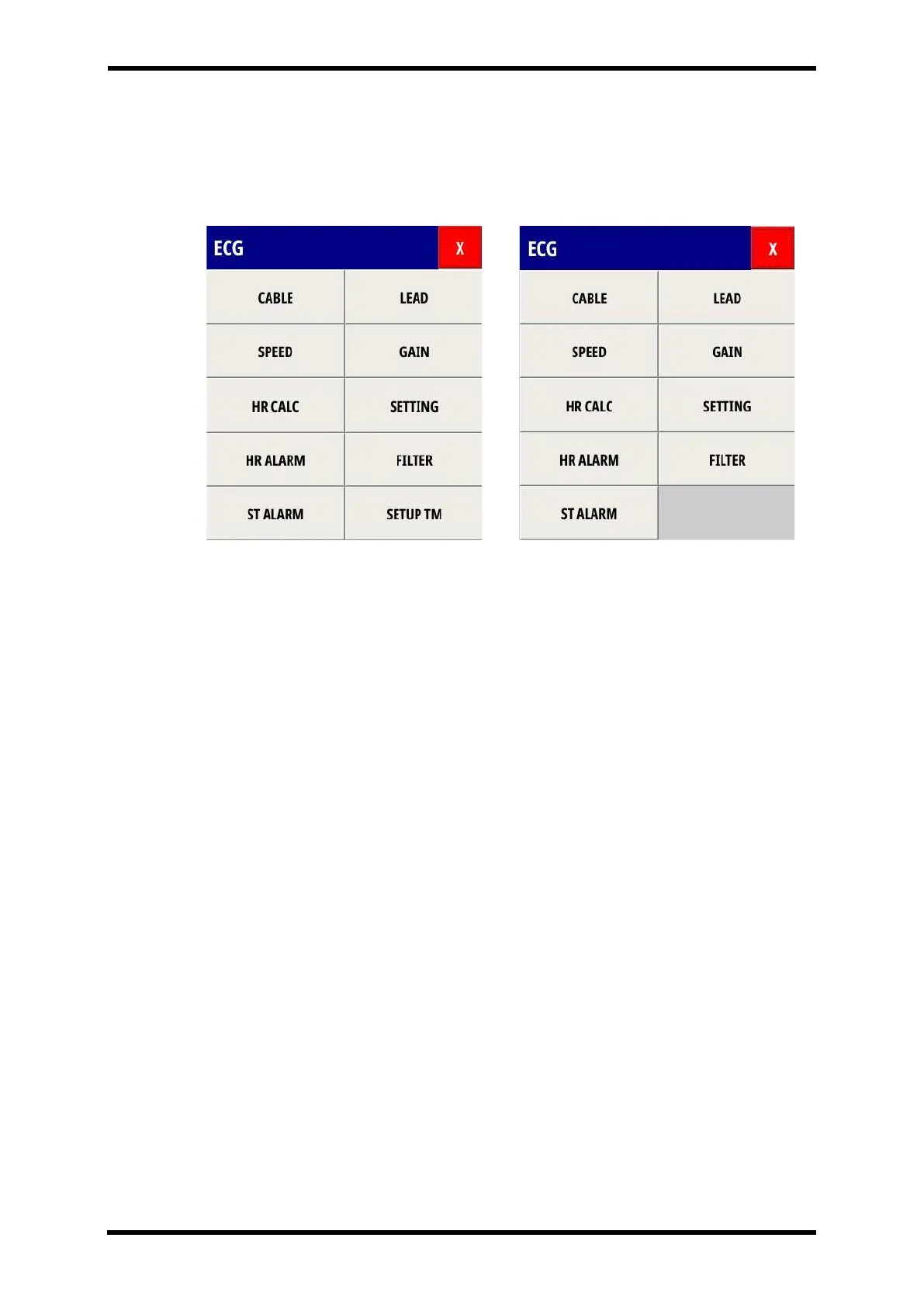

Figure 17-8. Displays - ECG Menu – STD1
Figure 17-9 Displays - ECG Menu – STD2
CABLE Select
Three kinds of Cables: 3-Lead, 5 Lead, EKG
LEAD Function
Leads have 3 kinds: CH1, CH2, CH3
CH1 ~ CH3 can set LEAD I, II, III, aVR, aVL, aVF, V1. (EKG Option: V2~V6)
If the user selects 3 Lead, the user can select one wave among ECG I, II, III wave.
SPEED Function
To control the speed of ECG wave.
ECG can set SPEED 6.25, 12.5, 25, 50mm/sec.
GAIN Function
To control the gain of ECG wave.
ECG can set GAIN 2.5, 5, 10, 20, 40mm/mV.
HR CALC ( “Administrator mode”)
The user can set HR Calculation 4, 6, 8, 10, 12, 14, 16.
