VM15 User Manual Description of Display and Symbols
44
Change Screen – 7/12 Leads ECG
7/12 Lead ECG screen is a screen that displays only ECG wave data in basic numerical data.
When using ECG 5 Lead cable, 7Lead (I, II, III, aVR, aVL, aVF, V) ECG waveform is displayed,
and When using 10 Lead cable, 12Lead (I, II, III, aVR, aVL, aVF, V1 , V2, V3, V4, V5, v6) ECG
waveform is displayed.
The ECG cable settings can be changed in the ECG menu.

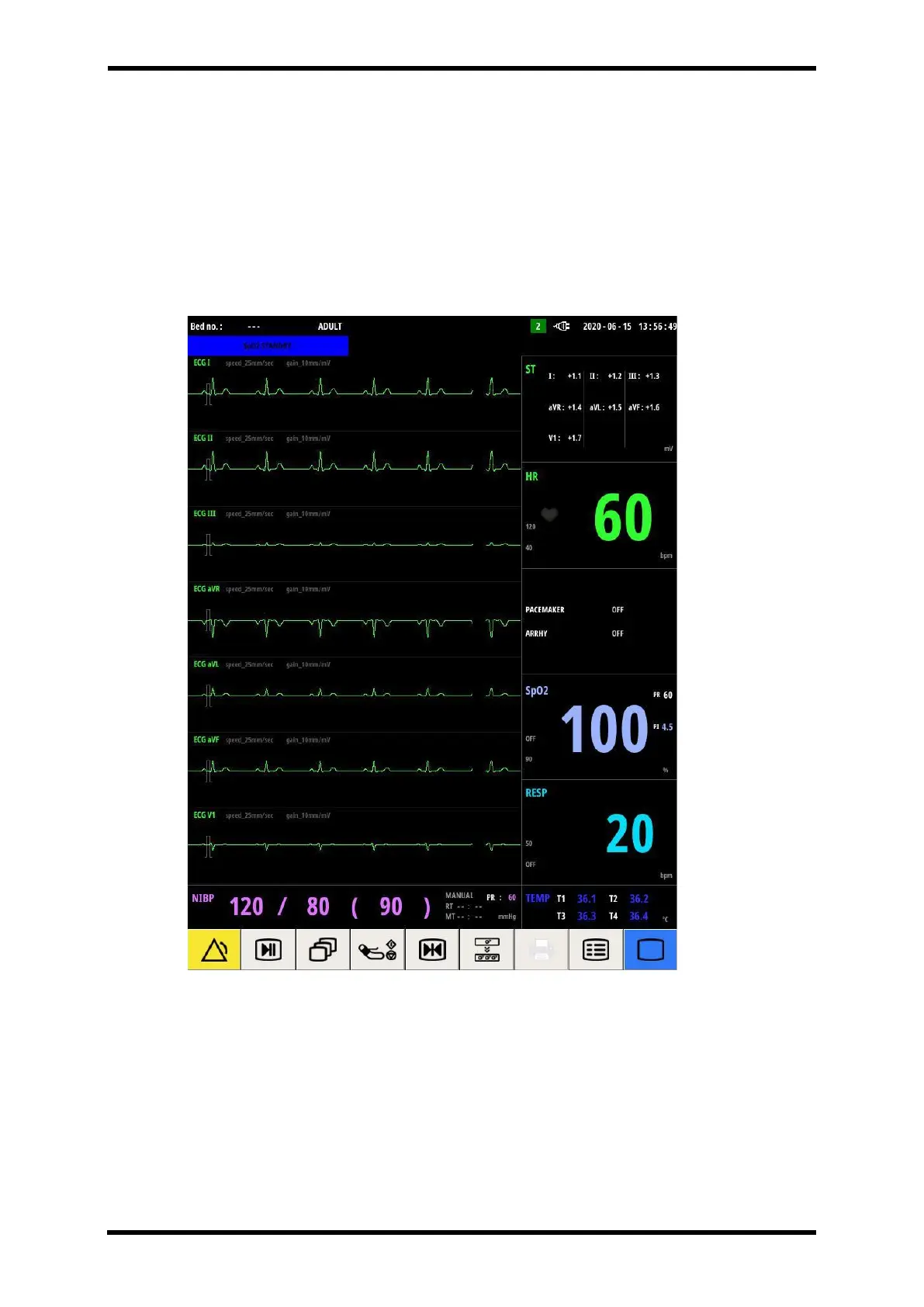

Figure 6-13. 7/12 Leads ECG Screen
