SENSOR DISCONNECT
SMAPLE LINE is not connected with sidestream
module.
MESUREMENT MODE
EtCO2 is normally on processing.
Description of CO2functions

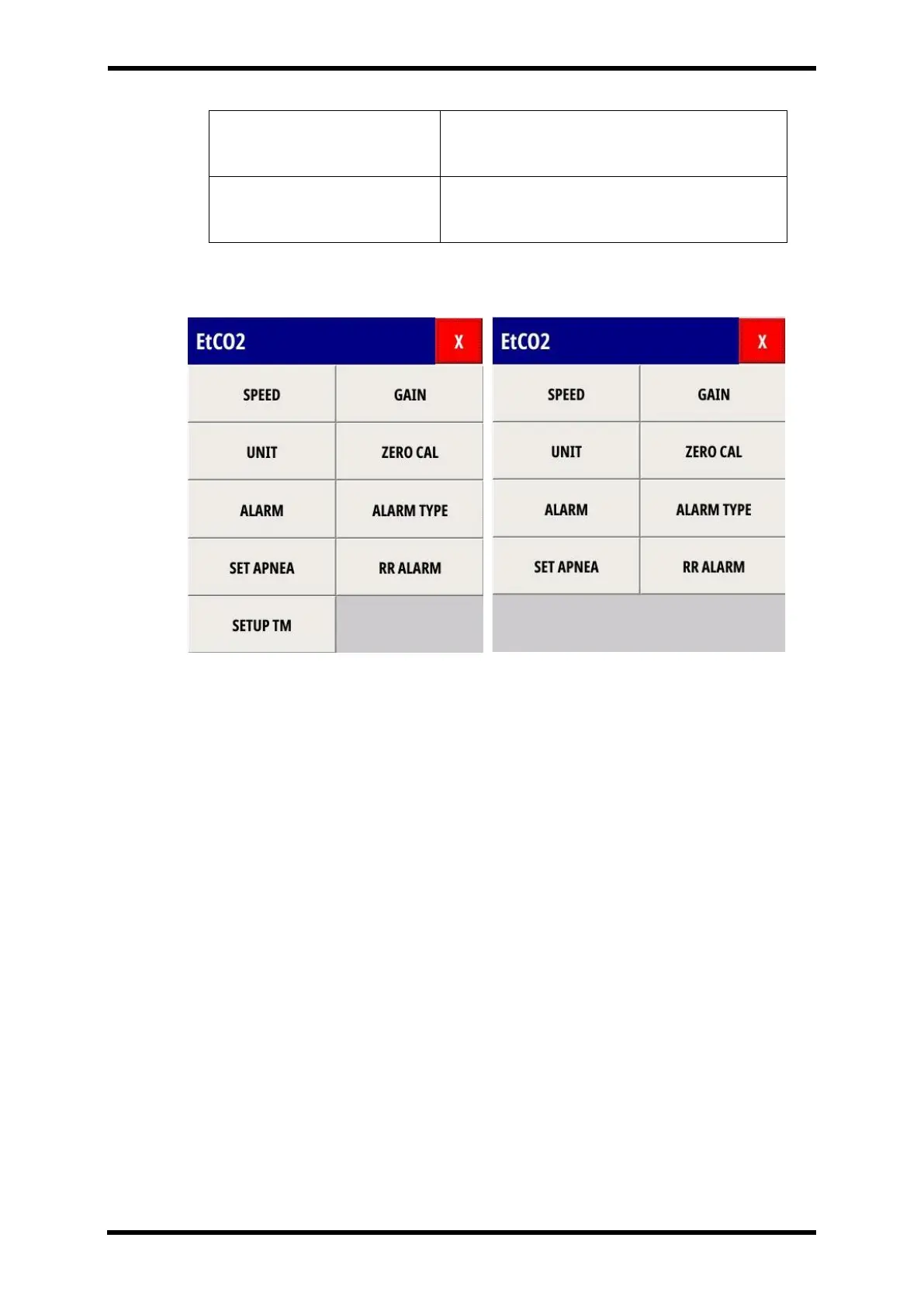

Figure 27-4. Displays - CO2 Menu (Left : STD1, Right : STD2)
SPEED Function
To control the speed of EtCO2 wave.
Four steps: 6.25, 12.5, 25, 50mm/sec
GAIN Function
To control the size of EtCO2 wave.
six steps : x0.25, x0.5, x1, x2, x3, x4
UNIT Function
UNITS: %, mmHg, kPa
ZERO CAL. Function
Press Zero Cal for Zero Calibration
