Display of RESP
RESP Measure screen

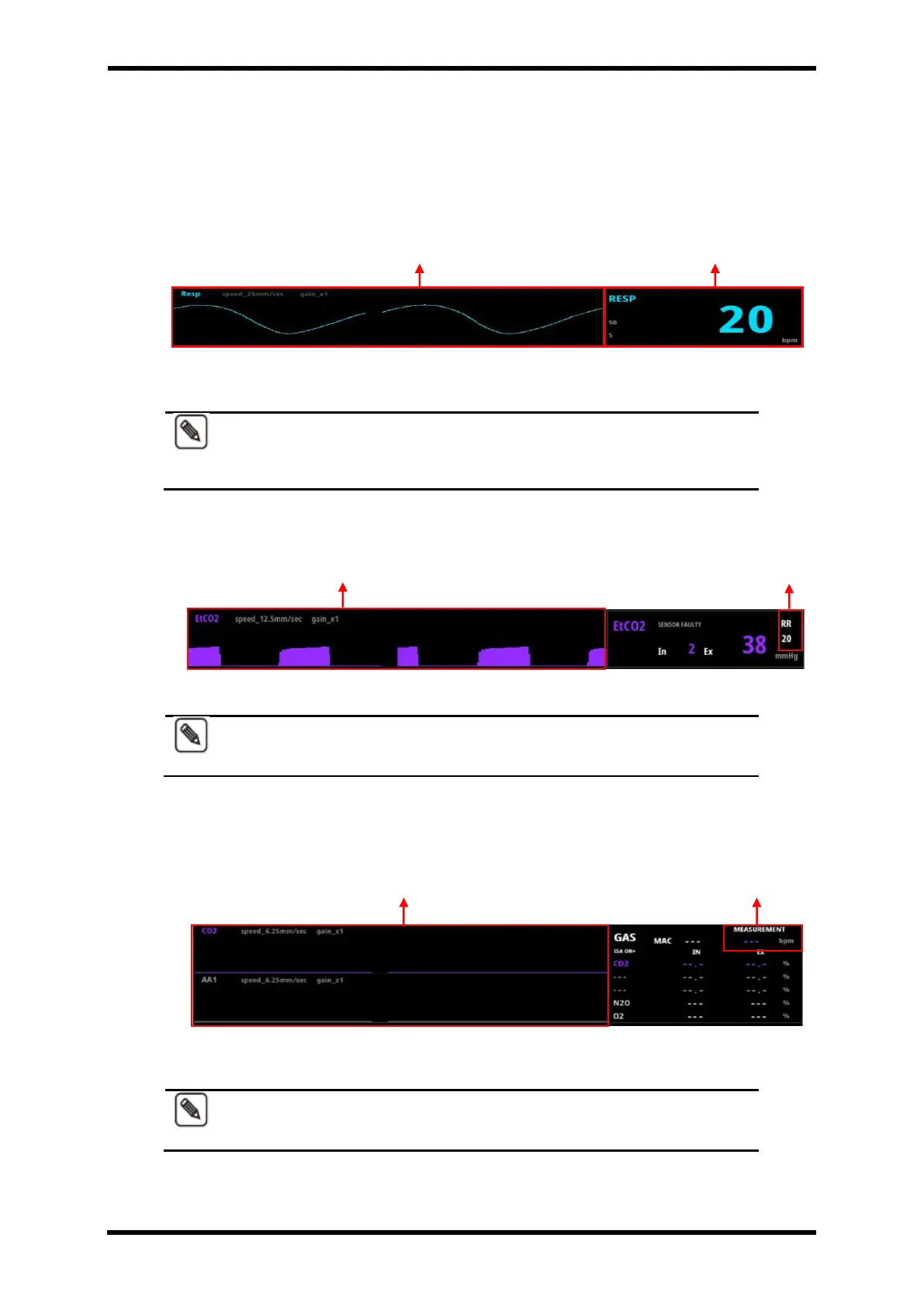

Figure 25-1. Displays - RESP
NOTE
Respiration Measurement is measured together with ECG, HR information.
ECG Resp Apnea can be turned off depending on each Resp value when
connecting EtCO2 and Multi-gas.
RESP/EtCO2 Measuring Screen
Figure 25-2. Displays - EtCO2
NOTE
EtCO2 respiration is prior automatically during EtCO2 measurement.
RESP/ GAS Measuring Screen
Figure 25-3. Displays - Multi-Gas
NOTE
Multi GAS respiration is prior automatically during Multi gas
measurement.
RESP Wave
RESP Numeric
EtCO2 Wave
RESP Numeric
RESP Numeric
MGas Wave Region
