ECG Numeric
Display ECG (HR) measure value.
ECG Message Box
Pacemaker ON/OFF message is shown in ECG message box as below.

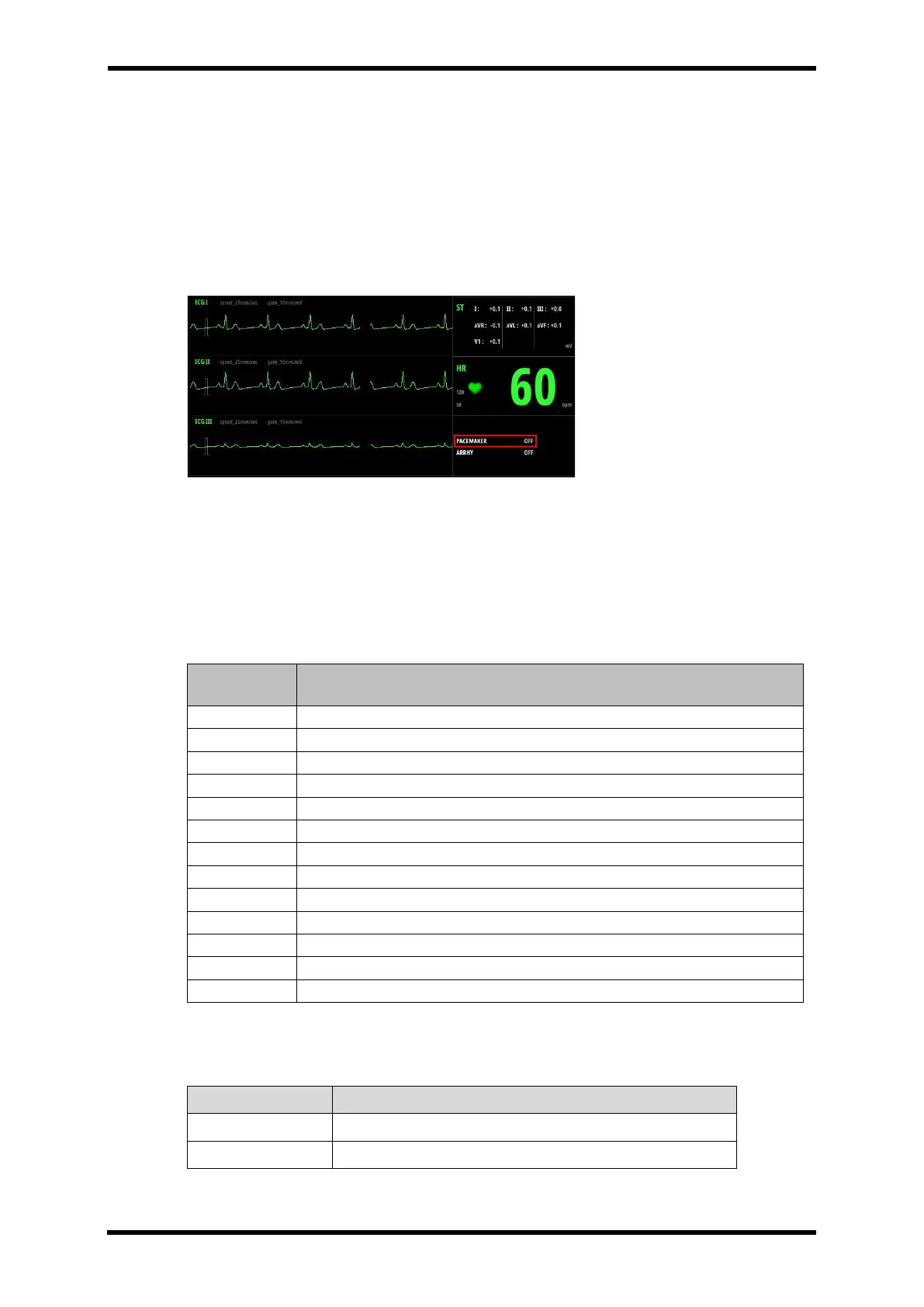

Figure 17-7. Pacemaker Message
Arrhythmia is the function to judge the status of Heart.
When Arrhythmia is on, all alarm is high alarm. When Arrhythmia is off, ECG Box displays ‘OFF’
ECG Arrhythmia Message is shown on the below table.
Table 17-2. Lead Message
Arrhythmia
message
Description
ASYS
Asystole or electromotive disassociation. NO beats.
VFIB
Ventricular flutter/fibrillation.
PVC
Premature ventricular contractioin.
VTAC
Ventricular tachycardia. PVCs at 180 BPM
BGM
Ventricular bigeminy. Normal beat followed by a PVC, repeated.
TGM
Ventricular trigeminy. Two normal beats followed by a PVC, repeated.
CPT
Couplet. Two PVCs together in a series with normal beats, repeated.
SBRD
Sinus bradycardia. Normal sinus rhythm below 60 BPM.
ATAC
Atrial tachycardia. Normal sinus rhythm over 140~220 BPM
SVT
Supra-ventricular tachycardia. Normal sinus rhythm over 220 BPM
VENT
Ventricular rhythm
TPT
Three PVCs together in a series with normal beats, repeated.
R on T
Superimposition of an ectopic beat on the T wave of a preceding beat
ECG Lead Message Box
Table 17-3. Lead Message
Message
Description
LEAD OK
Good connection of the cable.
LEAD OFF
Bad connection of the cable
