General
VM15 can adapt the modules like Mainstream CO2 or sidestream CO2.
CO2 provides the function of respiration figure measurement and the respiration of using
small tube-style Filterline / CO2 line.
CO2 measures the values through the cannula (Non Tube Inserting methods) to be attached
on the nose or respirator circuit (tube inserting methods)
Setup Connection
How to connect Mainstream Type
Connect CO2 module connector into the main body CO2. Connect sensor with Y-hose which
is connected with the patient.

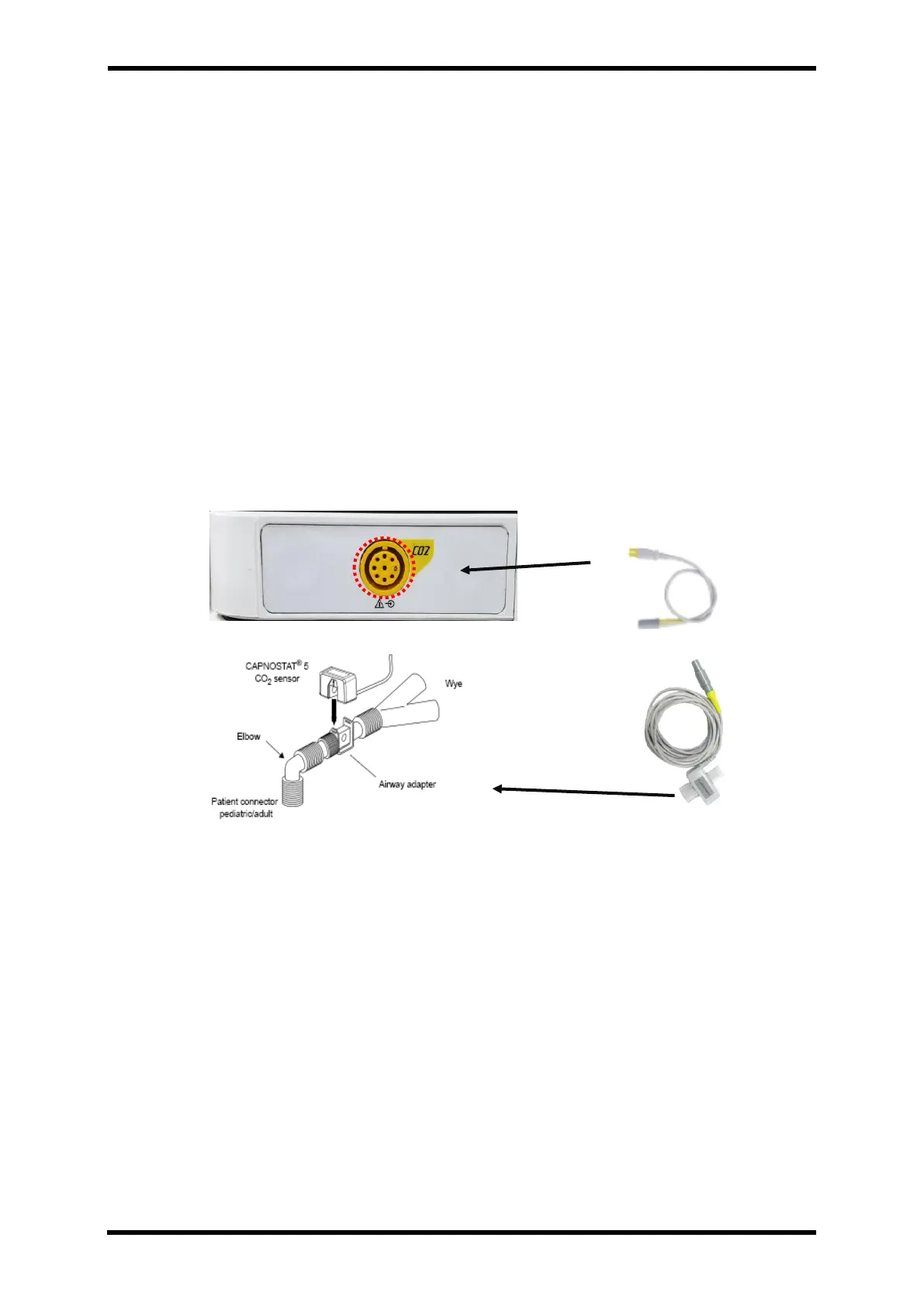

Figure 27-1. Mainstream Cable Connection
Inert CO2 module connector till it clacks.
