VM15 User Manual Printing (Option)
189

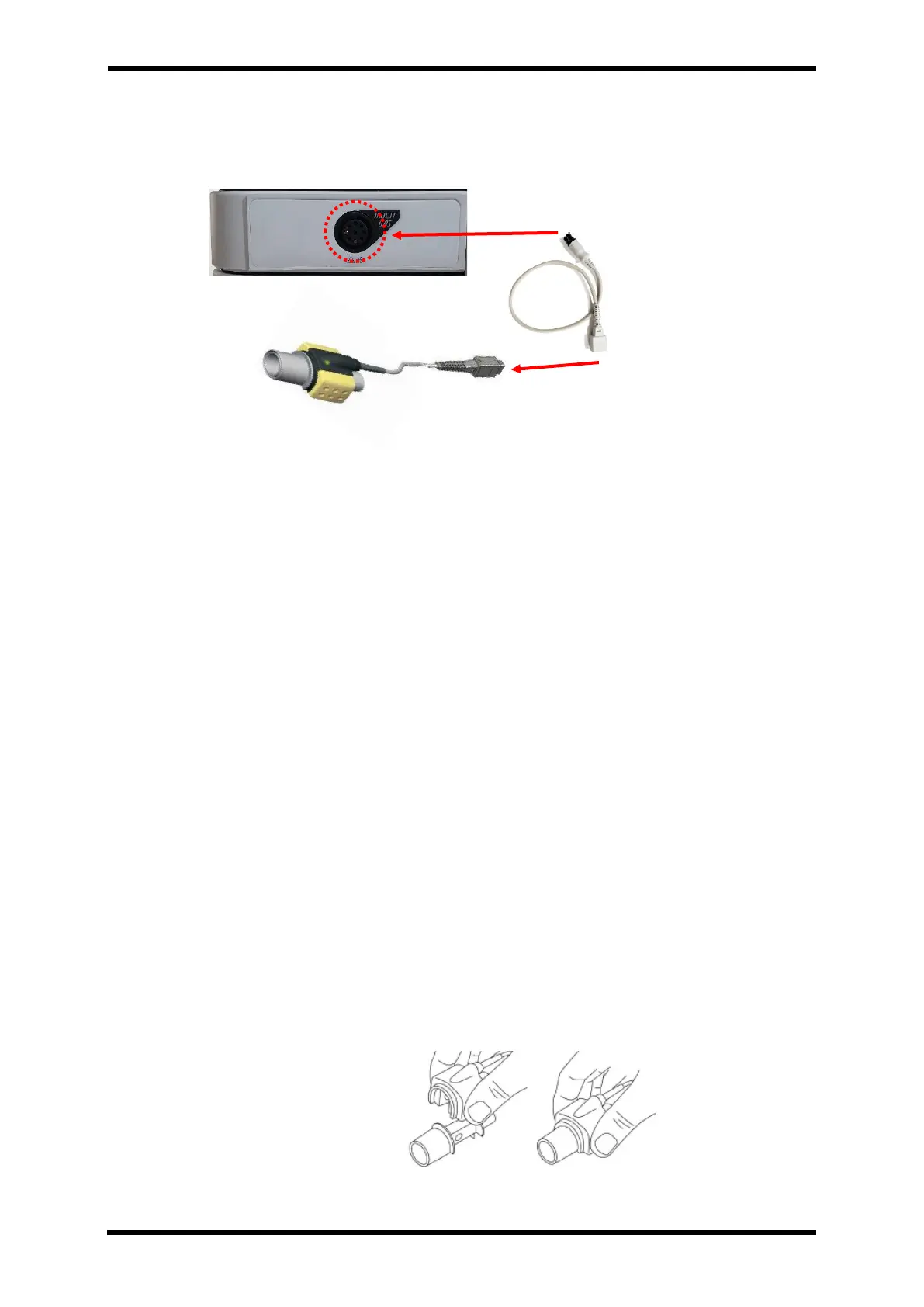

Mainstream Type Setup Connection
Figure 28-1. Mainstream Cable Connection
Intended use
Include the following text:
The IRMA main stream multi-gas probe is intended to be connected to other medical devices
for display of real time and derived monitoring data of CO2, N2O, and the anesthetic agents
Halothane, Enflurane, Isoflurane, Sevoflurane and Desflurane.
It is intended to be connected to a patient breathing circuit for monitoring of inspired/expired
gases during anesthesia, recovery and respiratory care. It may be used in the operating suite,
intensive care unit, patient room and emergency medicine settings for adult, pediatric and
infant patients.
It is not intended to be used as the only means of monitoring a patient. It shall always be
used in combination with other vital signs monitoring devices and/or professional human
judgments of patient condition. The IRMA probe is intended to be used by trained and
authorized health care professionals only.
System assembly instruction
Setup
I. Plug the IRMA connector into the IRMA input of <host device> and switch the
power on.
II. Snap the IRMA probe on top of a new IRMA airway adapter. It will click into place
when properly seated.
