How to connect Sidestream Type.
Connect CO2 module connector into the main body CO2. Connect sensor with Y-hose which
is connected with the patient.

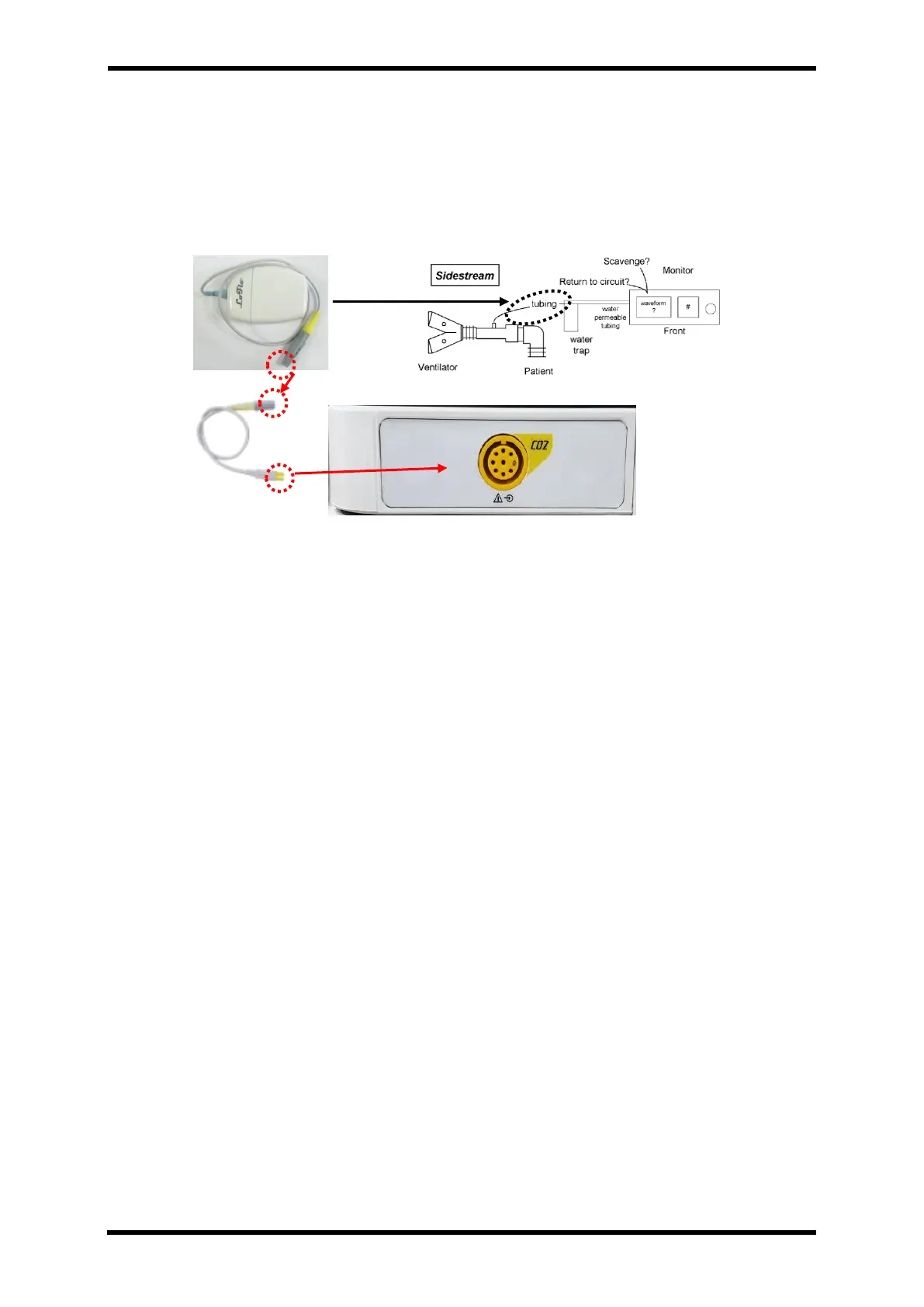

Figure 27-2. Sidestream Cable Connection
Inert CO2 module connector till it clacks.
Mainstream, Sidestream CO2 Calibration
When ZERO REQUIRED message is on the screen, calibrate Mainstream, Sidestream, CO2
module.
Select Zero Cal-Start at EtCO2 menu to control EtCO2 Zero point.
When select Zero Cal-Start, “ZERO IN PROGRESS” is displayed on the screen to confirm that
ZERO CALIBRATION is on operation.
