Graph Trend Screen Layout

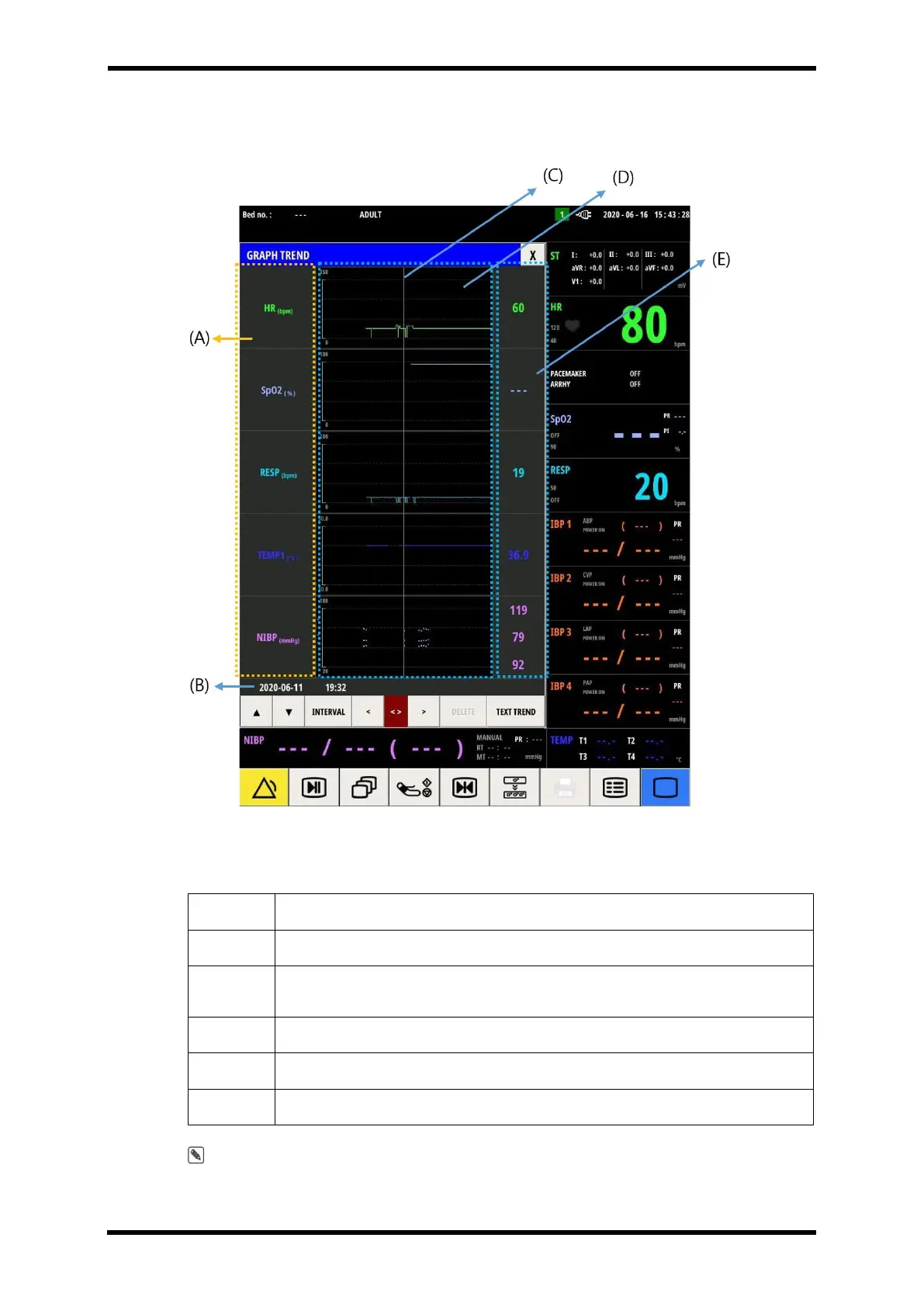

Figure 11-2. Graph Trend Popup Screen Layout
Table 11-3. Mark Description
Mark
Description
(A)
Graph trend data parameter title
(B)
Date/time with trend data at the Indicating-bar position
(yyyy-mm-dd hh:mm)
(C)
Indicating-bar
(D)
Trend wave display area
(E)
Numeric trend data at the Indicating-bar position
Note. In the Graph Trend screen, focus on the area marked (<>) between menu buttons,
press the Encoder once.
You can use the encoder to adjust the Indicating-bar position.
