Schematics
C
WEILER E2850 REMIXING TRANSFER VEHICLE
C-52
Schematics

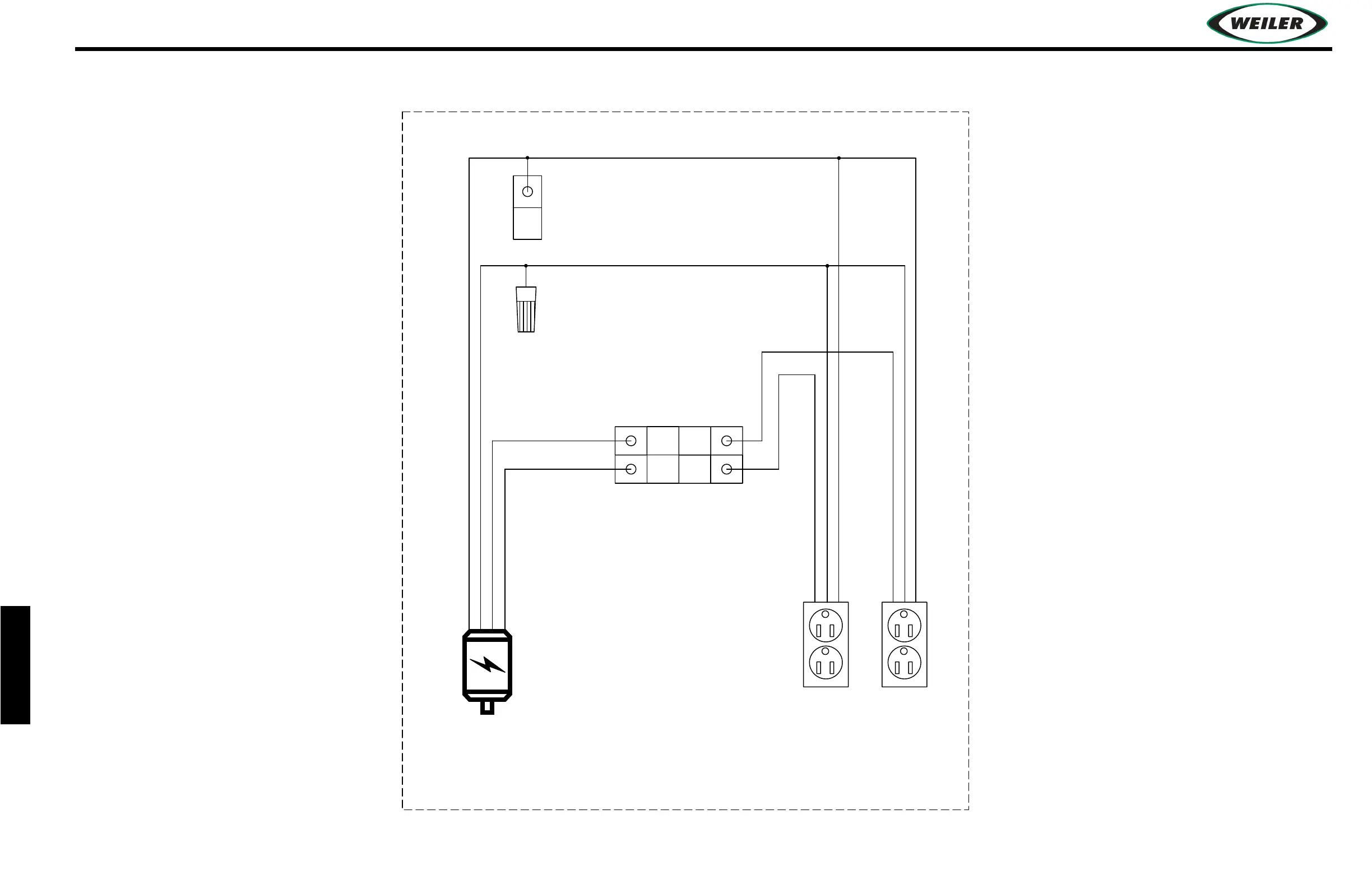

ELECTRICAL SCHEMATIC – S/N 1150–1153
10kw GENERATOR
w/P2 CAPACITOR
10GA BLACK WIRE, 600 VOLT, STRANDED
10GA WHITE WIRE, 600 VOLT, STRANDED
10GA GREEN WIRE, 600 VOLT, STRANDED
10GA WHITE WIRE, 600 VOLT, STRANDED
10GA BLACK WIRE, 600 VOLT, STRANDED
10GA GREEN WIRE, 600 VOLT, STRANDED
FRONT ELEVATOR 22064
120V GFI OUTLET
PLATFORM 22064
120V GFI OUTLET
21587
GROUND LUG
240V GENERATOR
BREAKER TYPE QOU220
20A 13793
10GA-BK TO THE GEN.
10GA-BK TO THE GEN.
9487
NEUTRAL
SET SCREW
15165
GENERATOR w/2 OUTLETS (OPT)
PAGE 9
