WEILER E2850 REMIXING TRANSFER VEHICLE
3-16
Operating Instructions
3
Preparing Machine

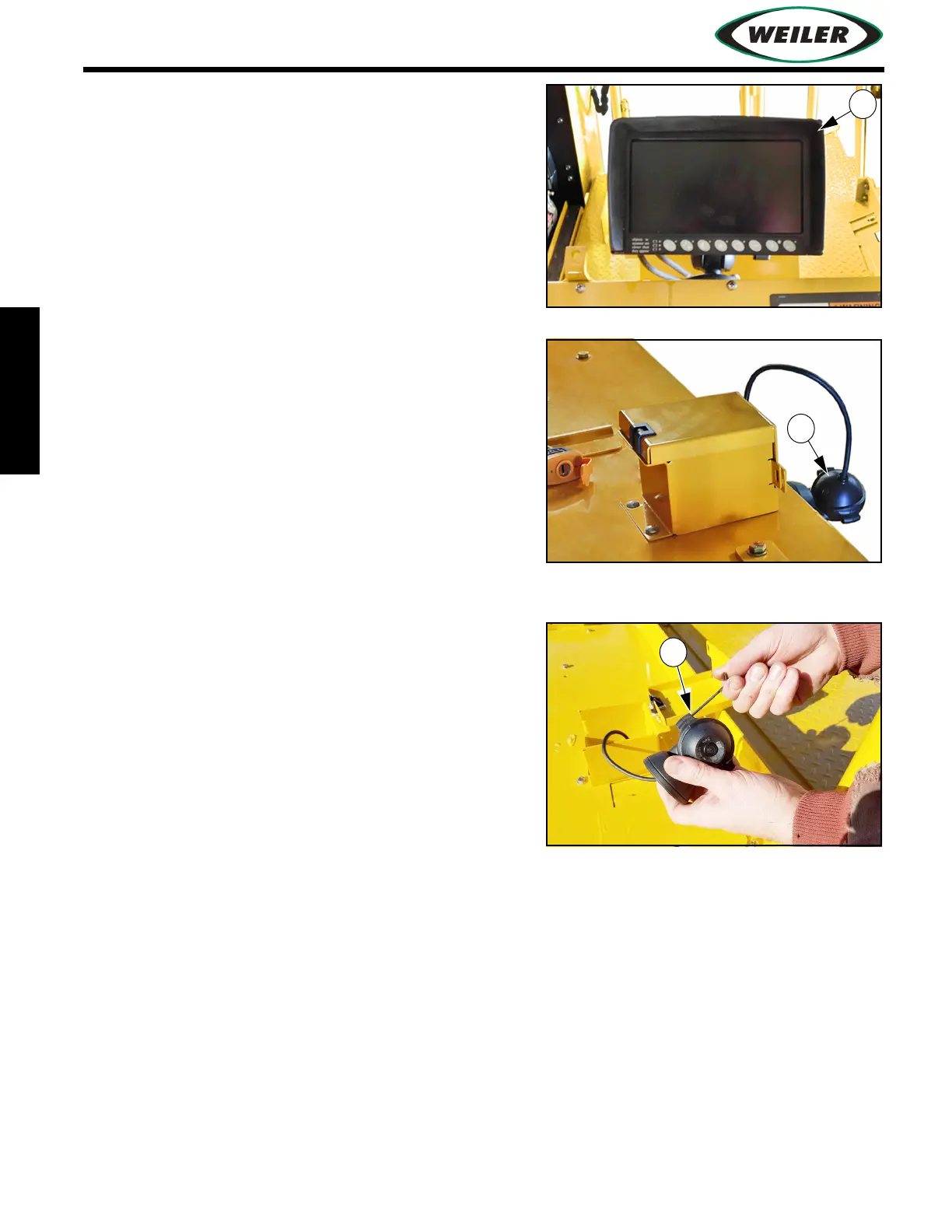

12. Place camera monitor (13) and lenses (14) in
working position.
Adjust camera lenses as needed. To adjust lens, use
2mm hex wrench to loosen fastener (15). Rotate lens
to desired position and tighten fastener.
