WEILER E2850 REMIXING TRANSFER VEHICLE
3-19
Operating Instructions
3
Preparing Machine

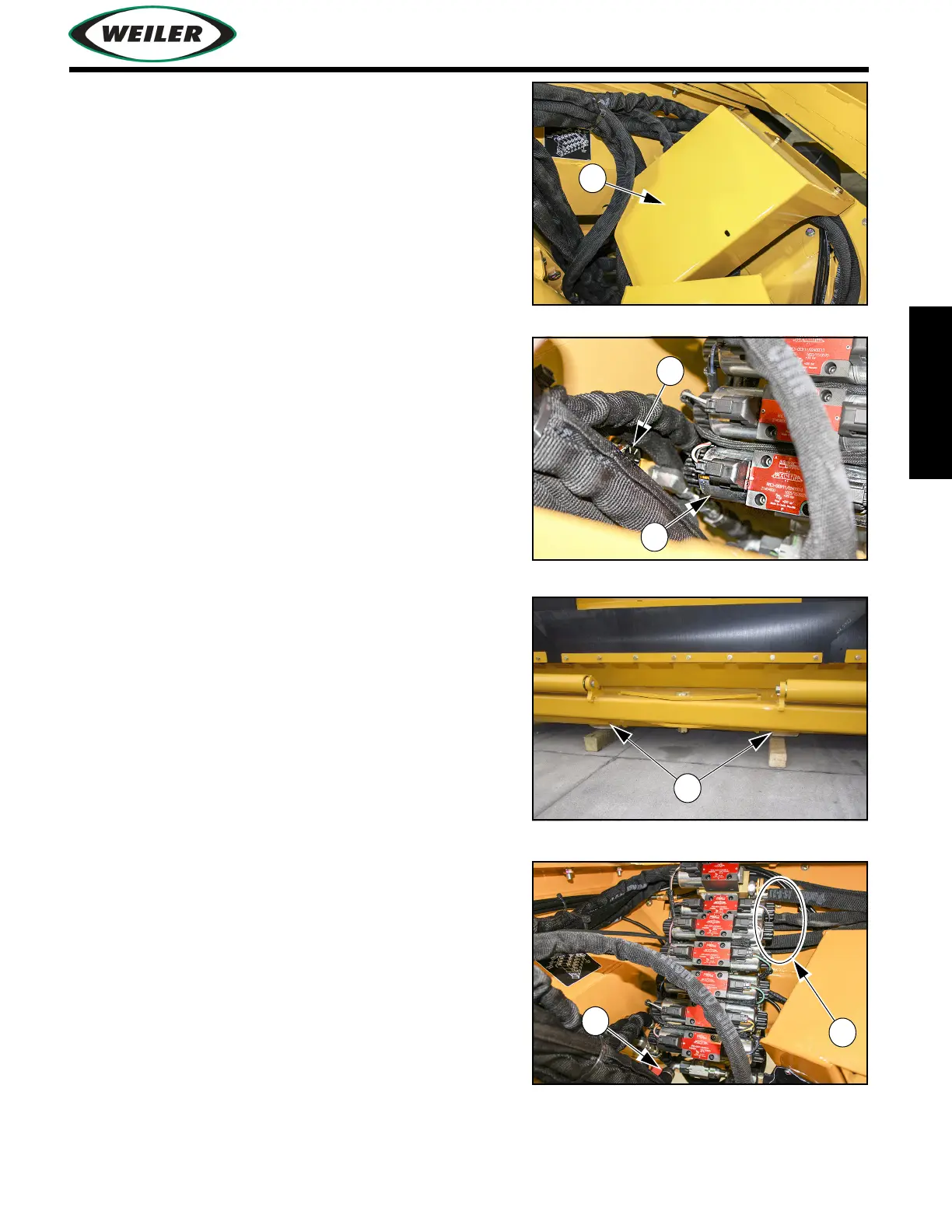

7. Remove dump hopper/elevator valve cover plate (6).
8. Remove solenoid coil (7) from spool valve to allow
access to cleanout cylinder rod bolt (8). Do not lose
valve O-ring.
9. Remove cleanout door cylinders (3).
10. Install solenoid coil (7).
11. Place blocking under dump hopper inner skid
shoes (9). Lower dump hopper onto blocking.
12. Turn engine off and remove ignition key.
13. Identify and tag five valve function hydraulic hoses
(10) and one return hose (11) and corresponding
valve ports for later return to dump hopper
configuration.
14. Disconnect, cap and plug the five function hoses (10)
and valve ports with #4 O-ring face seal fittings. Cap
and plug return hose (11) and port with #8 O-ring
face seal fittings.
15. Reinstall elevator valve cover plate.
