Xerox Phaser 6000 Service Manual

2-46 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation
Scanner

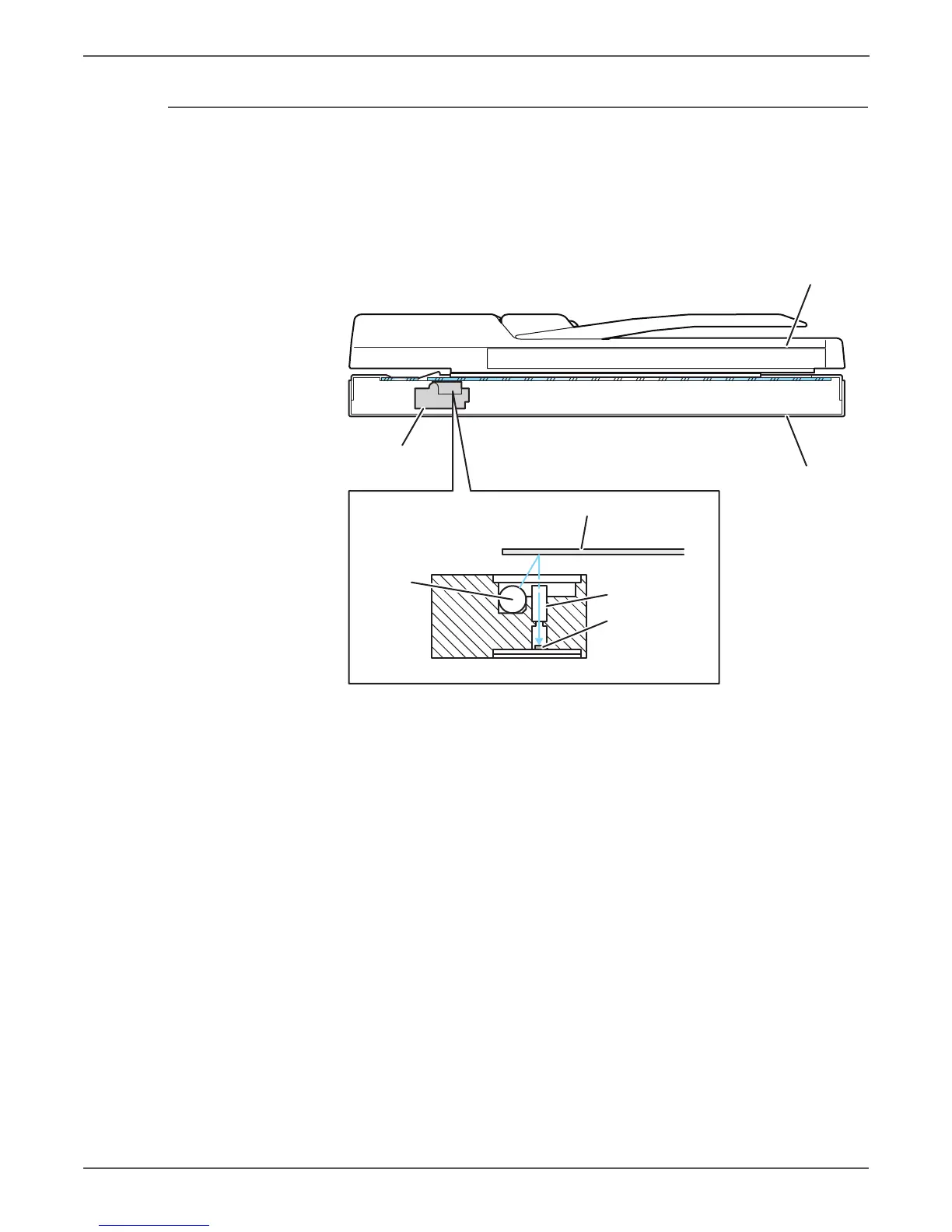

The Scanner Assembly consists of the Image Input Terminal (IIT), and in the
WorkCentre 6015N/NI Color MFP models, an Automatic Document Feeder (ADF).
Document scanning is performed by the carriage assembly in the IIT. The carriage
assembly consists of a CMOS image sensor for converting image to data, a LED
array for illuminating the original, and a rod scope for converting the original
image to a full-size image.
s6015-018
ADF
IIT
Carriage
Assembly
Document
LED Array
Rod Scope
CMOS
Image Sensor
