2-36 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation
• Cleaning Blade
Removes the toner remaining on the drum after the toner image is transferred
to the print medium.
• Magnet Roller
The magnet roller contacts the drum to form the toner image on the drum
surface.
•Auger
The auger agitates the toner particles.
• Trimmer
The trimmer uniformly levels the toner/carrier particles deposited on the
surface of the magnet roller.

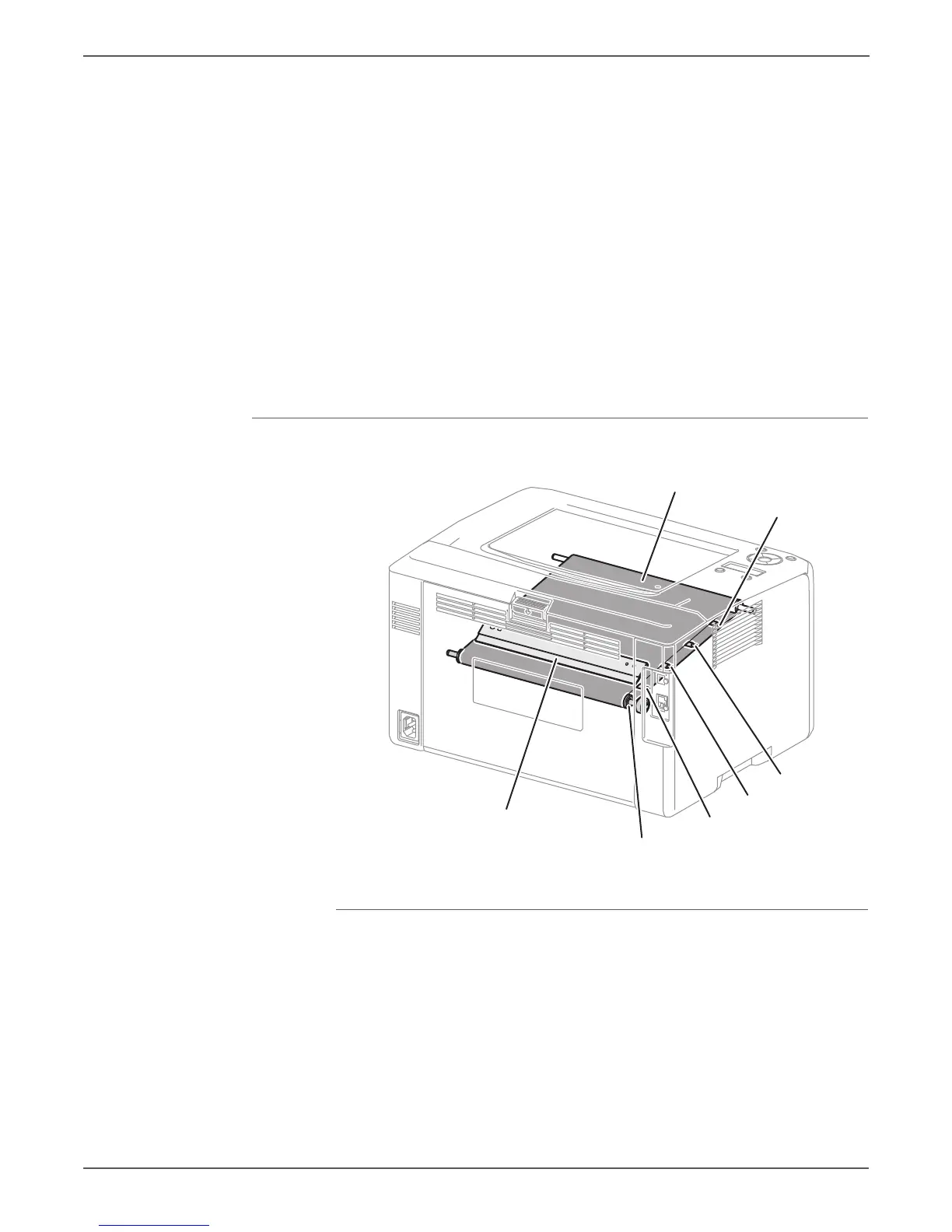

Transfer Belt
Major Functions
• 1st BTR Roller (Y/M/C/K)
Attracts the toner image on the drum to the transfer belt by positively
charging the transfer belt from the backside.
•Transfer Belt
Receives the four color-separated toner images from each drum in registration
with one another.
Belt
Cleaning Blade
Back Up Roller
1st BTR (K)
1st BTR (C)
1st BTR (M)
1st BTR (Y)
s6000-104
To Next Page
