Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 5-51
Image Quality
Skew

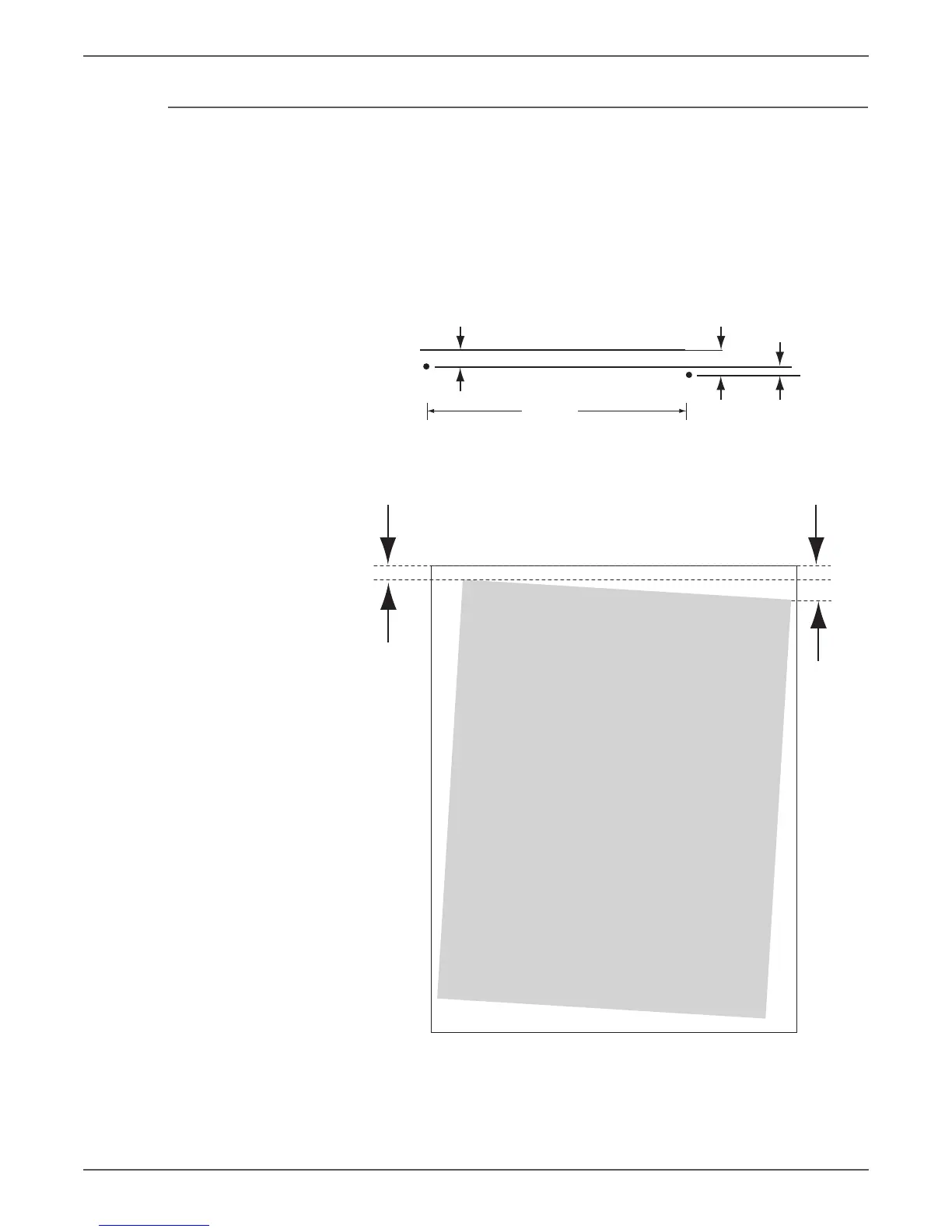

To measure skew, measure the margin of the paper at the leading edge of each
corner, and then take the difference between them.
Note
The most common reason for skew to be out of specification is because the
paper guides are set incorrectly.
Main Paper Tray (A4)
Main Paper Tray (LTR)
Bypass Tray (A4)
Bypass Tray (LTR)
180 mm ± 1.4 mm
200 mm ± 1.5 mm
180 mm ± 2.0 mm
200 mm ± 2.2 mm
Skew
Lead Edge
A
a = | T/E - C |
C
b = | T/E - D |
Skew = a - b
180 mm
s6000-242
B
A
Image Area
