2-70 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation

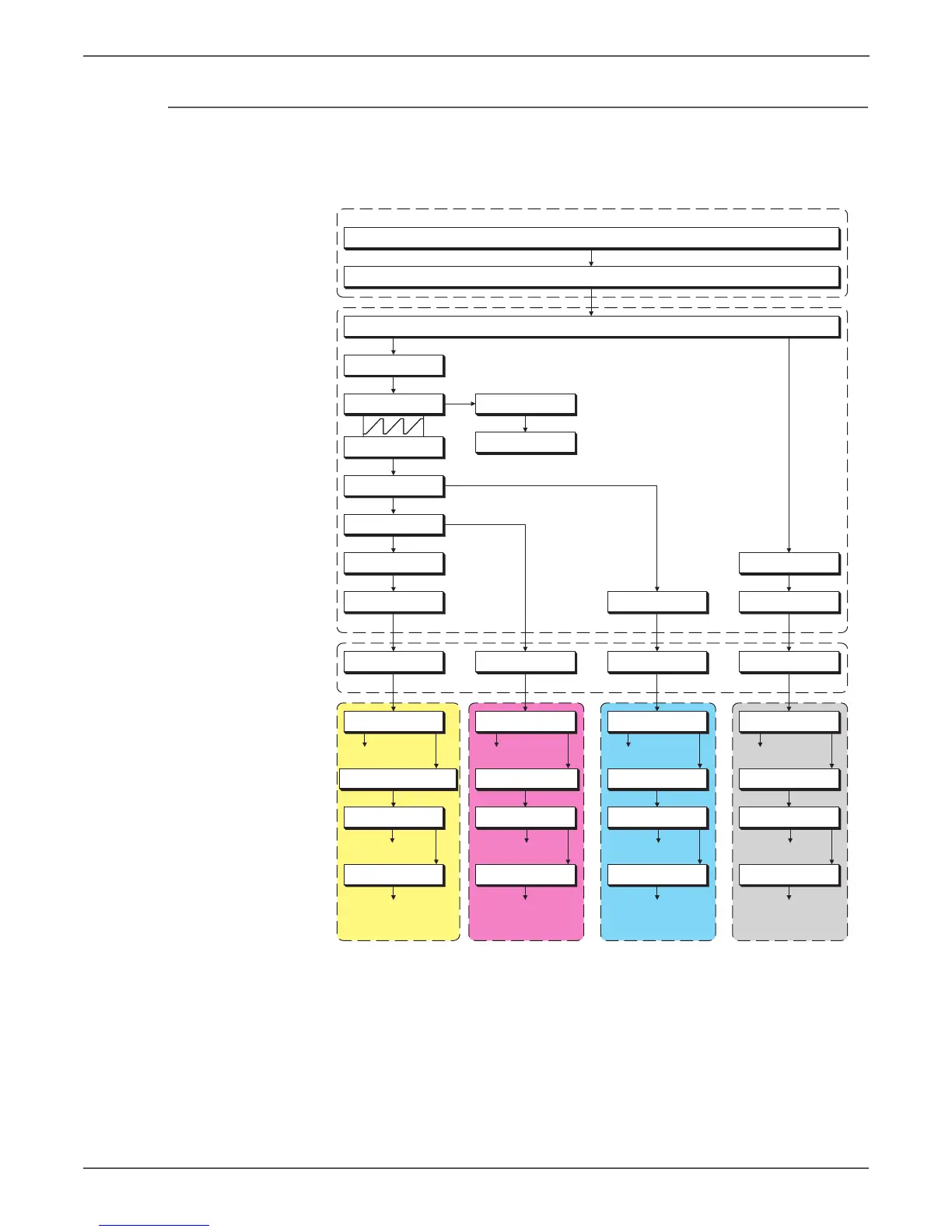

Full Color Mode Development Drive Flow
Motor Drive
Main Motor
Gear D1
Gear D2
[ Name Of Moving Parts ]
Magnet Gear (Y)
[ Magnet Roller (Y) ]
Magnet Idler Gear (Y)
Admix Auger Gear (Y)
Auger Gear (Y)
[ Supply Auger (Y) ]
[ Admix Auger (Y) ]
Xerographic
Developer (Y)
Magnet Gear (M)
[ Magnet Roller (M) ]
[ Supply Auger (M) ]
[ Admix Auger (M) ]
Magnet Gear (C)
[ Magnet Roller (C) ]
[ Supply Auger (C) ]
[ Admix Auger (C) ]
Magnet Gear (K)
[ Magnet Roller (K) ]
[ Supply Auger (K) ]
[ Admix Auger (K) ]
s6000-127
Gear D6 (Y) Gear D6 (M) Gear D6 (C) Gear D6 (K)
MU Drive
Idler Gear D2
Idler Gear D1
Gear DK2
Gear DK1
Idler Gear D1
Idler Gear D2
Gear D5
Gear D3C
Gear D4 Out
Gear D4 In
Idler Gear D2 Idler Gear D2
Developer Drive
Xerographic
Developer (M)
Xerographic
Developer (C)
Xerographic
Developer (K)
Magnet Idler Gear (M) Magnet Idler Gear (C) Magnet Idler Gear (K)
Auger Gear (M) Auger Gear (C) Auger Gear (K)
Admix Auger Gear (M) Admix Auger Gear (C) Admix Auger Gear (K)
