Xerox Phaser 6000 Service Manual

8-68 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly
Xerographics
Xerographics Assembly
PL3.1.1
1. Remove the Main Paper Tray Cover (Phaser 6000/6010 page 8-7; WorkCentre
6015 MFP page 8-29).
2. Remove the Front Cover (Phaser 6000/6010 page 8-8; WorkCentre 6015 MFP
page 8-34).
3. Open the Rear Door.
4. Remove the Left Side Cover (Phaser 6000/6010 page 8-10; WorkCentre 6015
MFP page 8-29).
5. If present, remove the Wi-Fi Assembly (page 8-103).
6. Remove the Top Cover (Phaser 6000/6010 page 8-11; WorkCentre 6015 MFP
page 8-22).
7. Remove the Rear Cover (Phaser 6000/6010 page 8-15; WorkCentre 6015 MFP
page 8-24).
8. Remove the Toner Door (Phaser 6000/6010 page 8-19; WorkCentre 6015 MFP
page 8-27).
9. Remove the IP Board (page 8-114).
10. Remove the Fuser (page 8-80).
11. Remove the Cleaner Assembly (page 8-79).

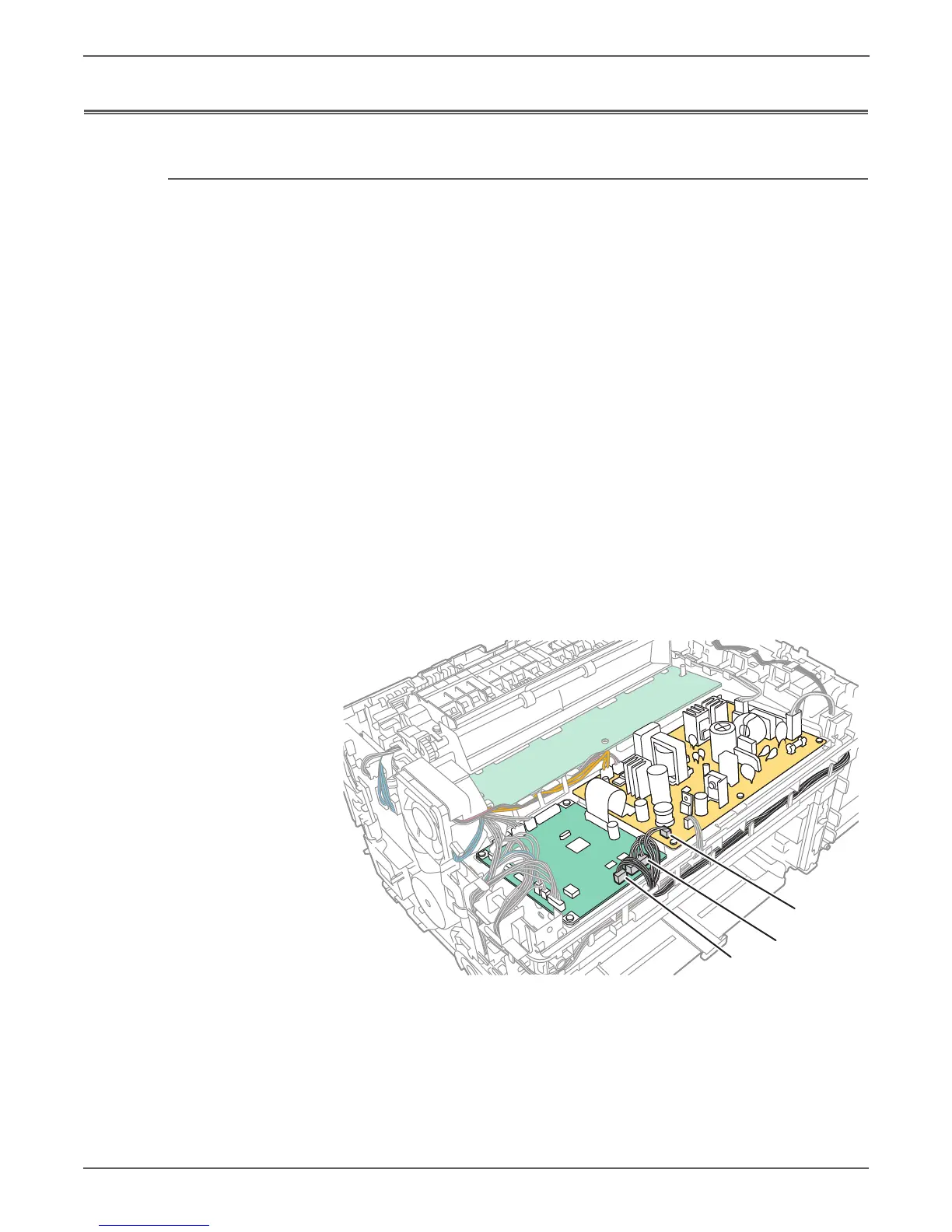

12. Disconnect P/J206 on the LVPS, and P/J13 and P/J20 on the MCU Board.
Release the harness from the harness guide.
s6000-069
P/J206
P/J13
P/J20
