Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-21
Theory of Operation

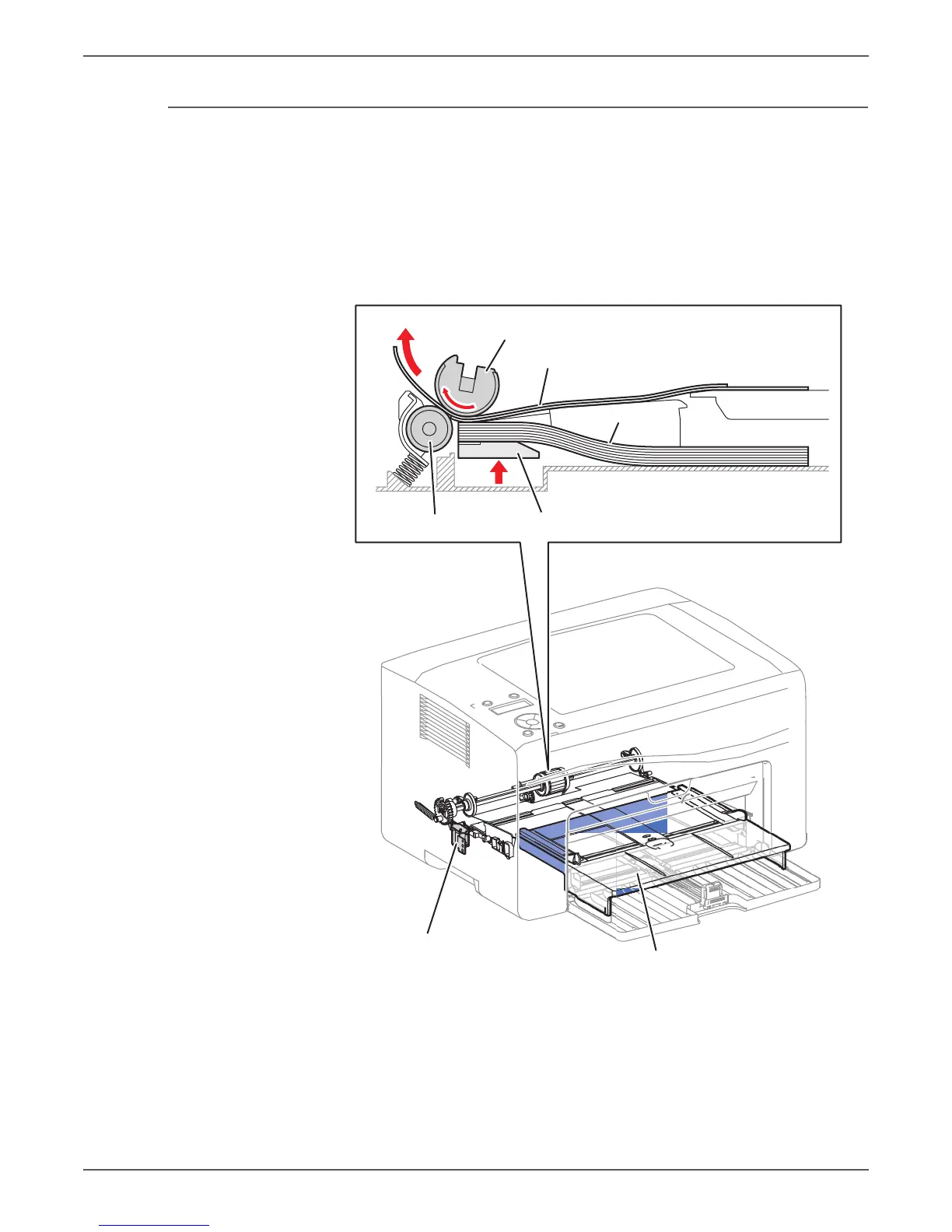

Feeding from the Bypass Tray
When feeding from the Bypass Tray starts, the Feed Roller rotates, driven by the
Main Drive Assembly and controlled by the Feed Solenoid, to feed the sheet to the
position where it is nipped between the Feed Roller and the Separator Pad.
The paper path from the Main Paper Tray and the paper path from the Bypass
Tray are the same. The sheets loaded in the Bypass Tray are positioned nearer to
the Feed Roller, and are given the higher priority in feeding if both the Main Paper
Tray and the Bypass Tray are loaded.
Feed Roller
Paper (PSI)
Bottom PlateSeparator Roller
Paper (MPF)
Feed Solenoid
Bypass Tray
s6000-083
