Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-35
Theory of Operation

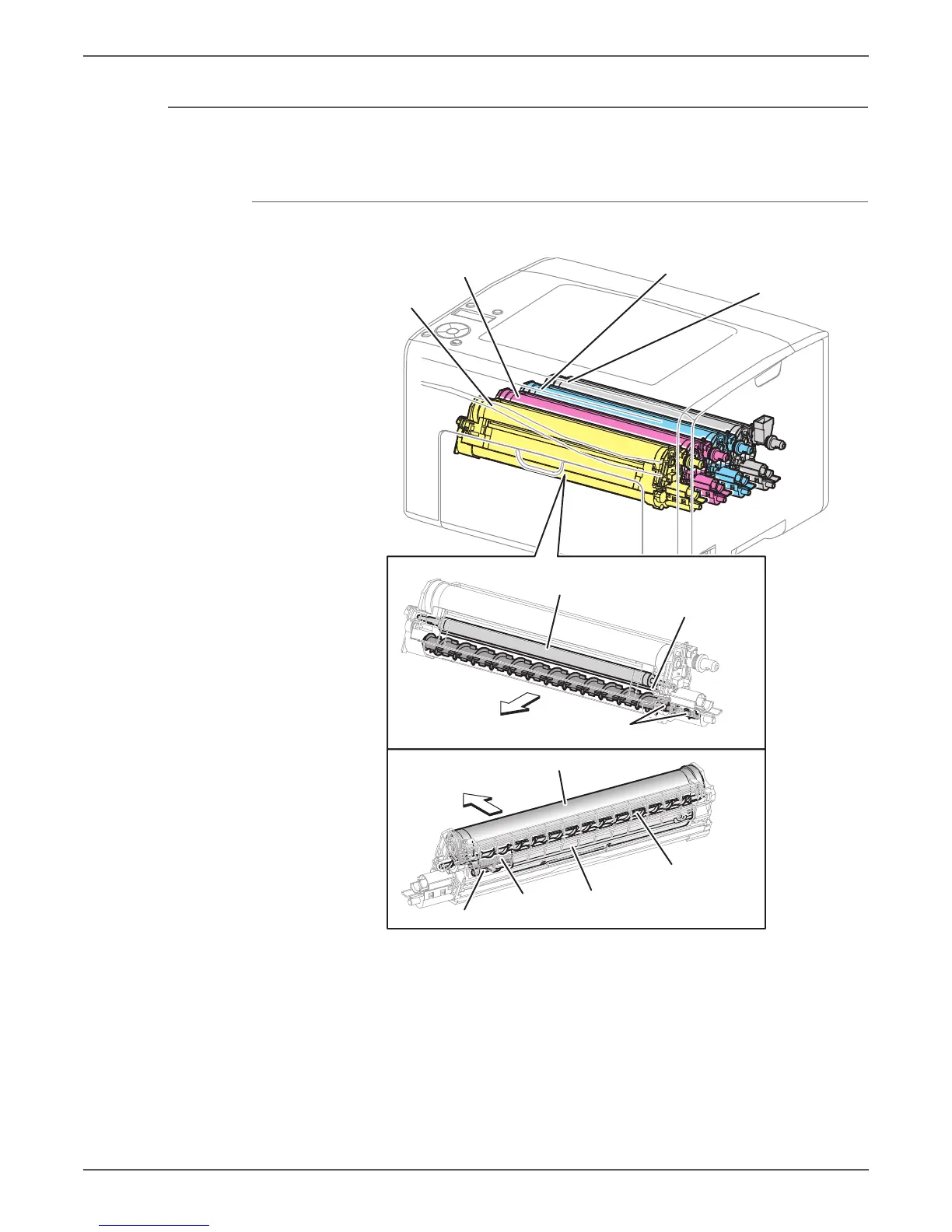

Xerographic Assembly
The xerograhic assembly contains the developers and transfer belt.
Major Functions
•Drum
The drums are exposed to LED light to create latent images for each of Yellow,
Magenta, Cyan, and Black.
• Bias Charge Roller (BCR)
Charges the drum electrically.
• Cleaning Roller
Removes the toner remaining on the BCR.
Developer (Y)
Developer (M)
Developer (C)
Developer (K)
Cleaning Roller
Trimmer Rod
Auger
Magnet Roller
BCR
Drum
Cleaning Blade
Cleaning Auger
Developer Part
Xerographic Part
s6000-103
Front
Front
To Next Page
