Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 4-43
Troubleshooting

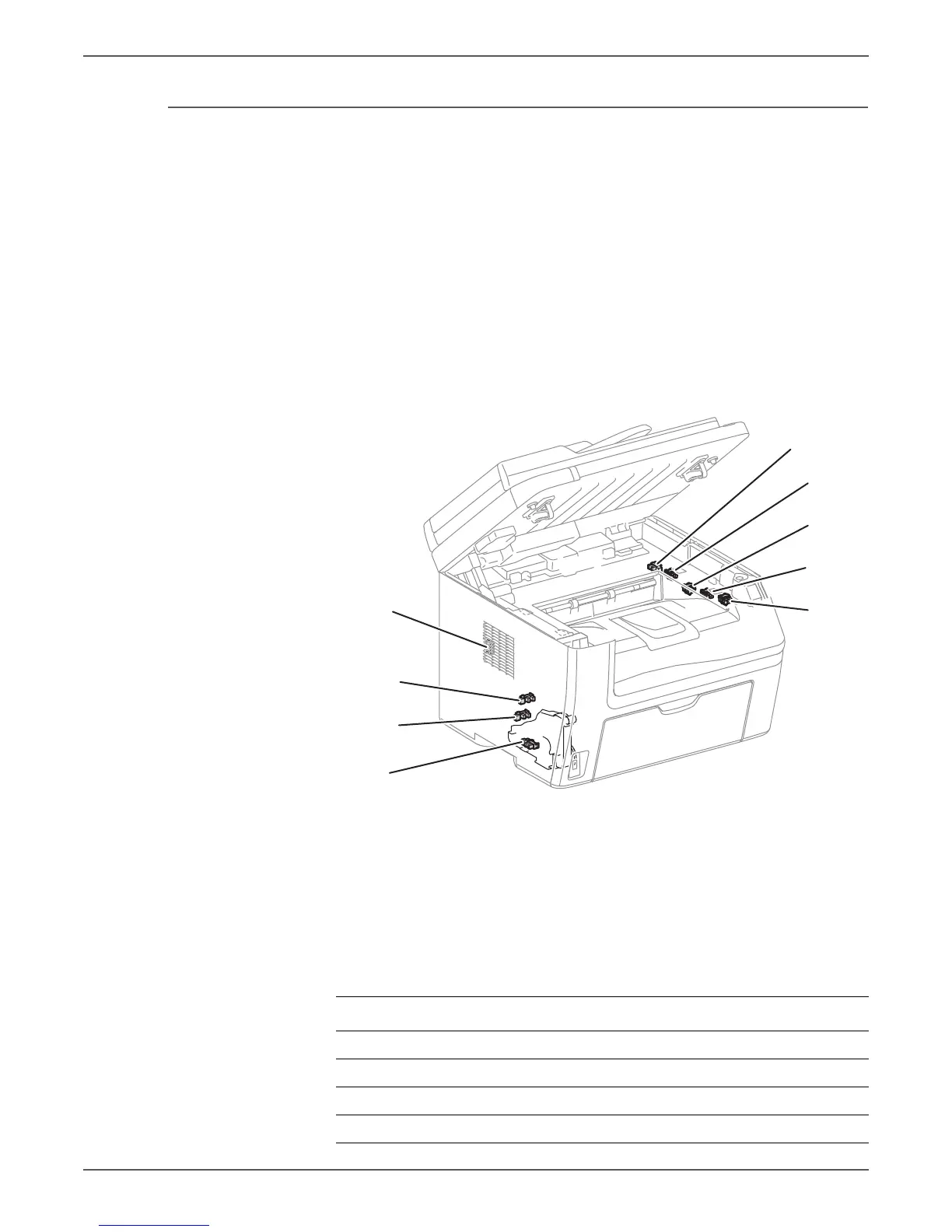

WorkCentre 6015 MFP Sensor Test Procedures
The following Digital Input procedures test each print engine sensor using Service
Diagnostics. When a paper jam occurs, or an error message or code is displayed,
execute these tests to isolate the problem.
• No Paper Sensor
•K Mode Sensor
•Exit Sensor
• Registration Sensor
• Interlock Switch (Cover Open Sensor)
• Y, M, C, K CRUM
Note
Pressing the Cancel button stops the sensor tests. Press the Back button to go
back to the Engine Diag menu.
During the sensor tests, other diagnostic functions can not be performed
simultaneously. The printer only accepts operations for the DI components and
exit of the sensor tests.
Parameters for the Digital Input tests are as shown in the following table.
Code Component
DI-0 Fan Alarm ((internal signal)
DI-2 No Paper Sensor
DI-3 K Mode Sensor
DI-4 Exit Sensor
Interlock
Switch
Registration
Sensor
No Paper
Sensor
K Mode
Sensor
CRUM Y
CRUM M
CRUM C
CRUM K
Exit Sensor
s6015-033
