2-76 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation

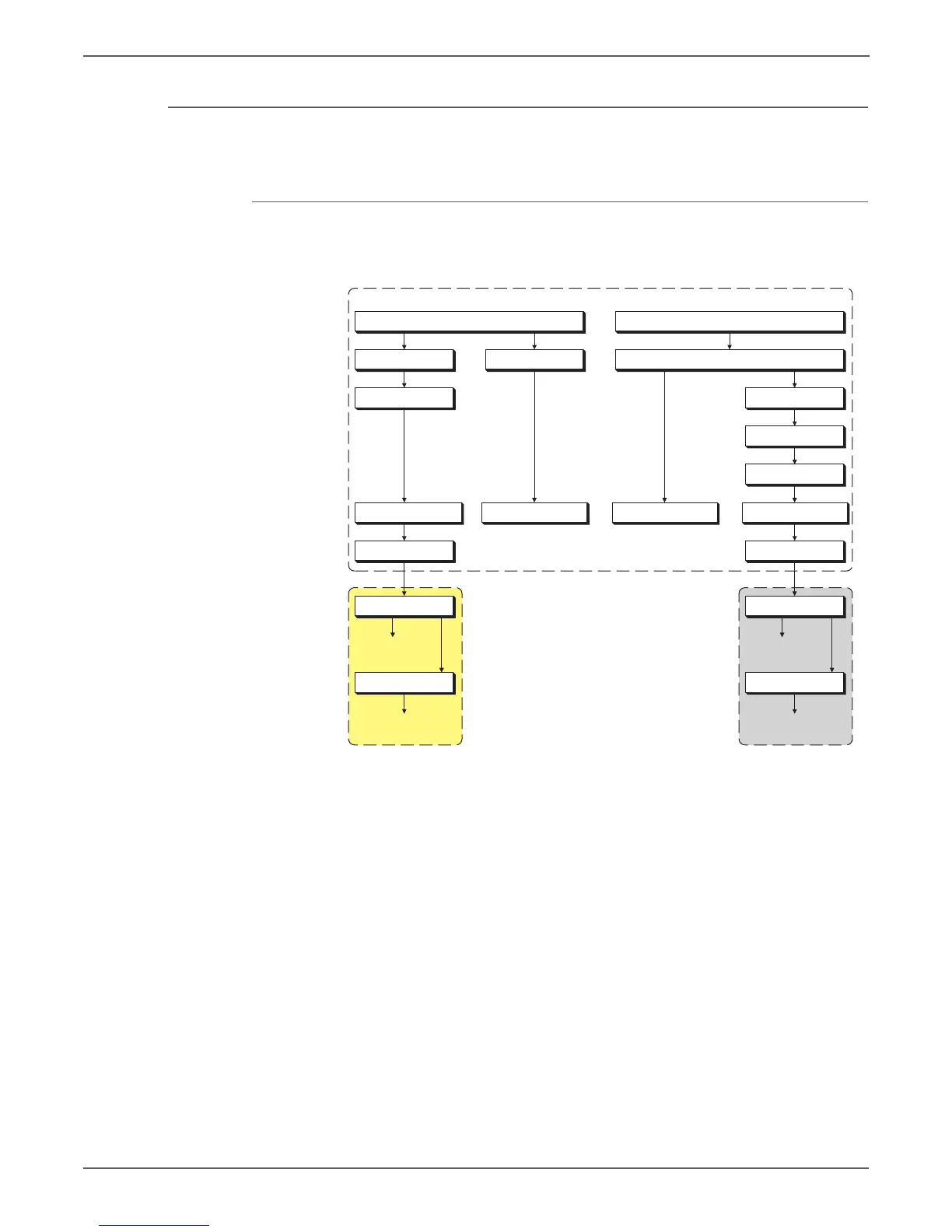

Toner Dispenser (Y, M, C, K) Drive Flow
The torque of the Toner Dispenser drives the auger in the Toner Cartridge.
Toner Dispenser Y and K Drive Flow
Dispenser
Dispense Motor (Y), (M)
Dispense Motor (C), (K)
Idler Gear 34
Oneway Clutch (Y)
Idler Gear 34
Idler Gear 34 Idler Gear 34
Idler Gear 23 (Y) Idler Gear 23 (K)
Auger Gear (Y)
[ Dispense
Auger (Y) ]
[ Dispense
Auger (K) ]
[ Cartridge Auger (Y) ] [ Cartridge Auger (K) ]
Toner Cartridge (Y)
s6500-133
[ Name Of Moving Parts ]
Auger Gear (K)
Toner Cartridge (K)
Idler Gear 34
Idler Gear 34
Idler Gear 34
Oneway Clutch (M) Oneway Clutch (C) Oneway Clutch (K)
Auger Gear (Y)
Auger Gear (K)
