Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-75
Theory of Operation

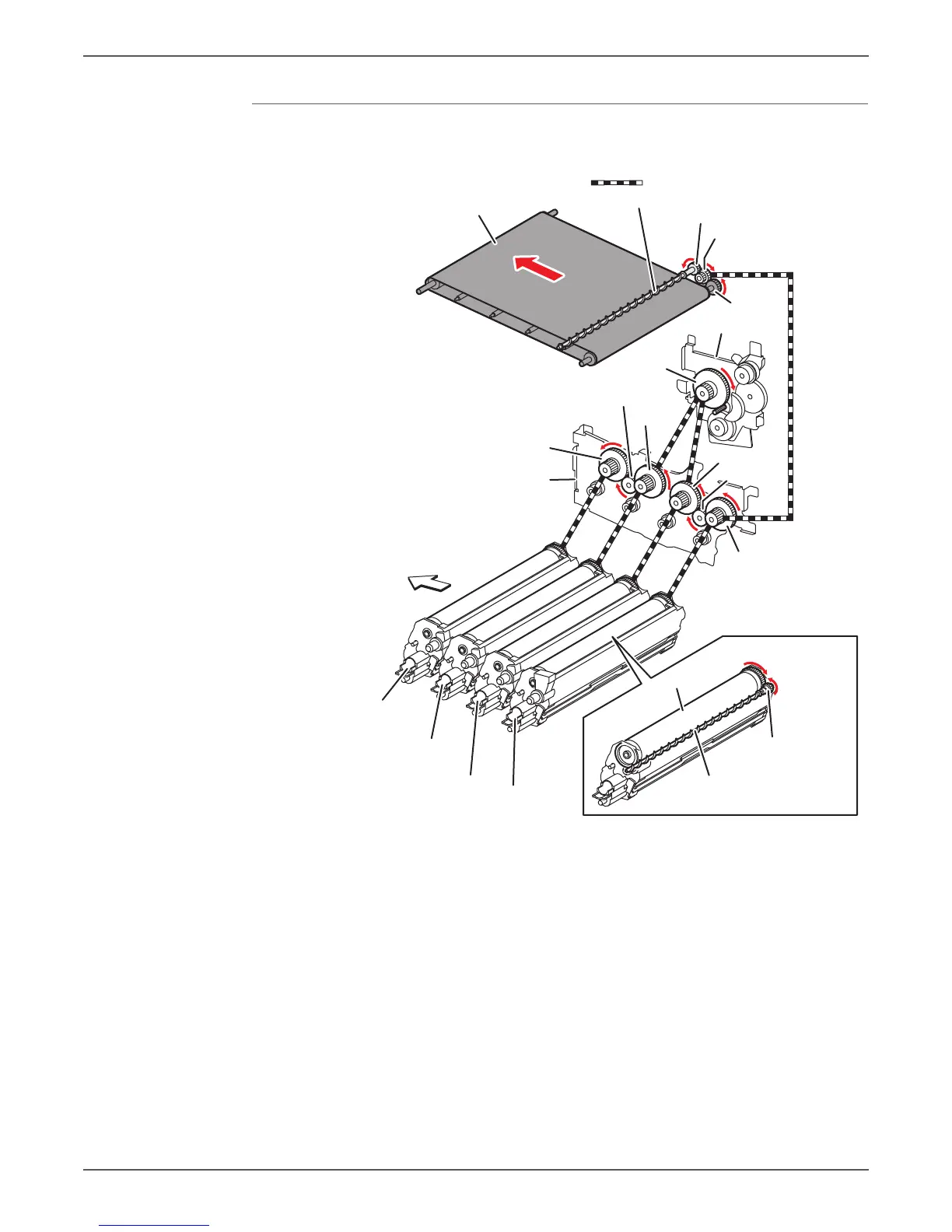

Drum, Belt Drive, and Excess Toner Collecting Drive Components
Front
s6000-132
: Indicates The Engagement Of Gears
[ Name Of Moving Parts ]
Motor Drive
Gear X1
Gear Idler X
Gear Idler X
DRV Gear
Gear X2
Gear X2
Gear X2
MU Drive
Xerographic
Developer (Y)
Xerographic
Developer (M)
Xerographic
Developer (C)
Xerographic
Developer (K)
[ Belt ]
Auger Gear
[ Belt Cleaning Auger ]
Gear X2
Gear T1
Xerographic
Cleaning Auger Gear
[ Drum ]
[ Xerographic Cleaning Auger ]
