Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-27
Theory of Operation
Main Paper Tray
Major Functions
• Side Guides
The side guides align the print media stack in the width direction by moving
perpendicularly to the paper feeding direction.
• Tray Extension
The Tray Extension aligns the print media stack in the length direction and
determines the paper size by moving in the paper feeding direction.
•Separator Pad
The Separator Pad and the Feed Roller nip the print medium to prevent
multiple sheet feed.
• Bottom Plate
When sheets are fed, the bottom plate rises to the position where sheets can
be fed (see “Feeding from the Main Paper Tray” on page 2-19).

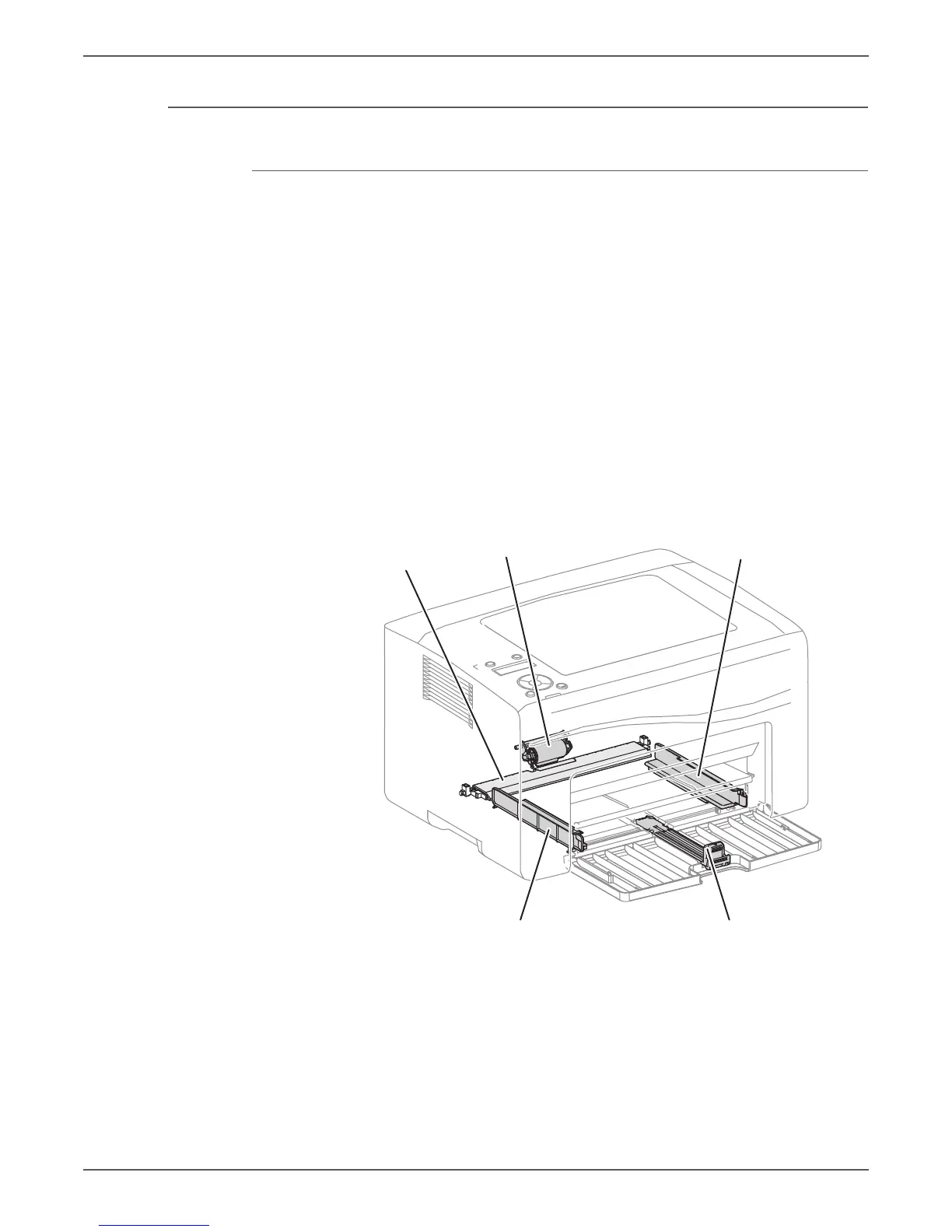

Bottom Plate
Separator Holder
Right Side Guide
Left Side Guide
Tray Extension
s6000-087
