Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-33
Theory of Operation
LED Print Head
Major Functions
•LED Print Head (LPH)
An exposure device for creating an electrostatic latent image on the drum
surface. One unit is provided for each of Yellow, Magenta, Cyan, and Black.
•LED Board
A circuit board that distributes signals from the LED Driver Board to the LPH.

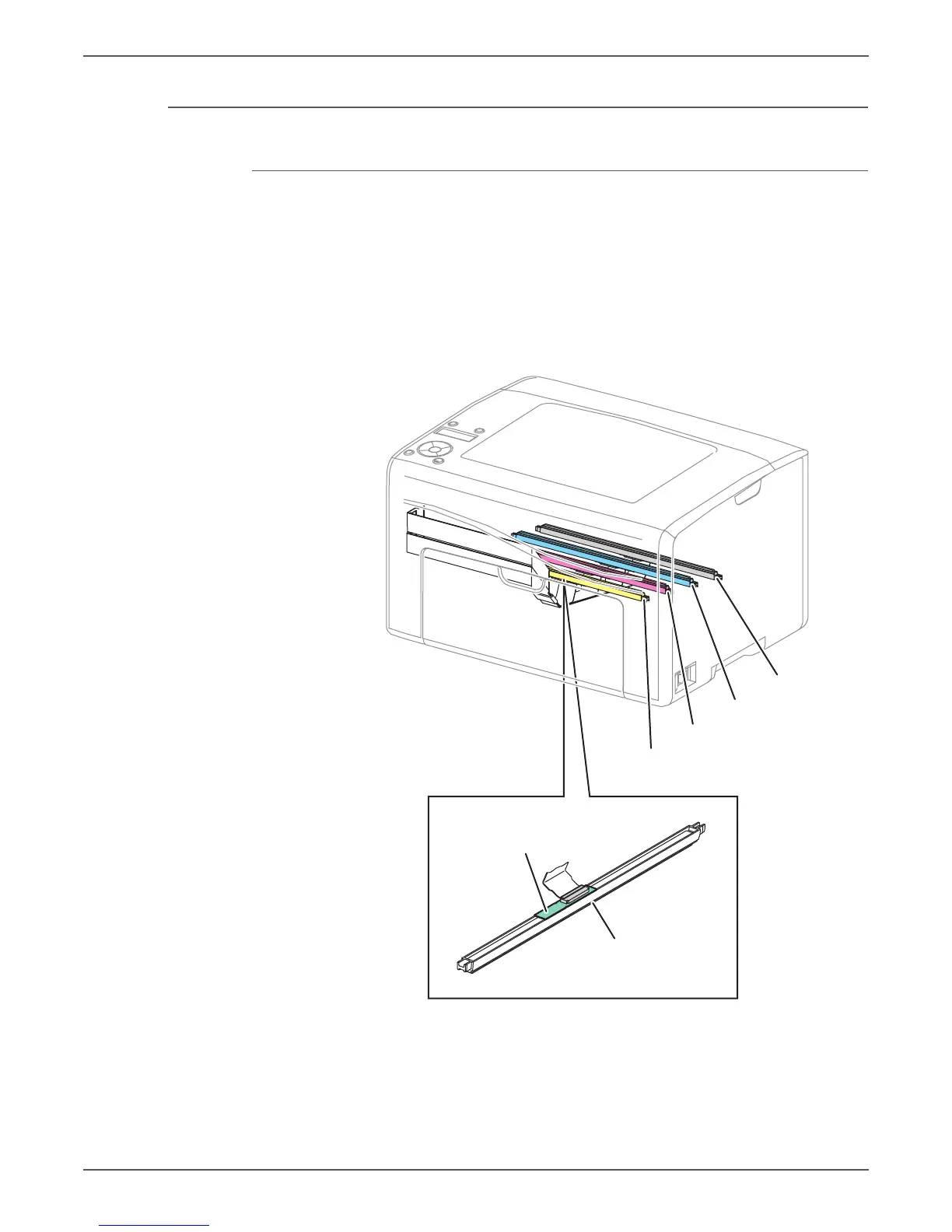

LPH Assembly (Y)
LPH Assembly
LPH Assembly (M)
LPH Assembly (C)
LPH Assembly (K)
ASIC PWB
Bottom View
s6000-091
