Xerox Phaser 6000 Service Manual

2-32 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation
Process Control Sensors
Major Functions
•ADC Sensor
Measures the density of the toner patches on the belt at the Window position
before the secondary transfer, and converts it to a voltage value. This voltage
value is used for toner density control.
• MOB (Mark On Belt sensor) Sensor
Detects misregistration among the YMCK colors based on the marks created
on the rear side of the Belt.

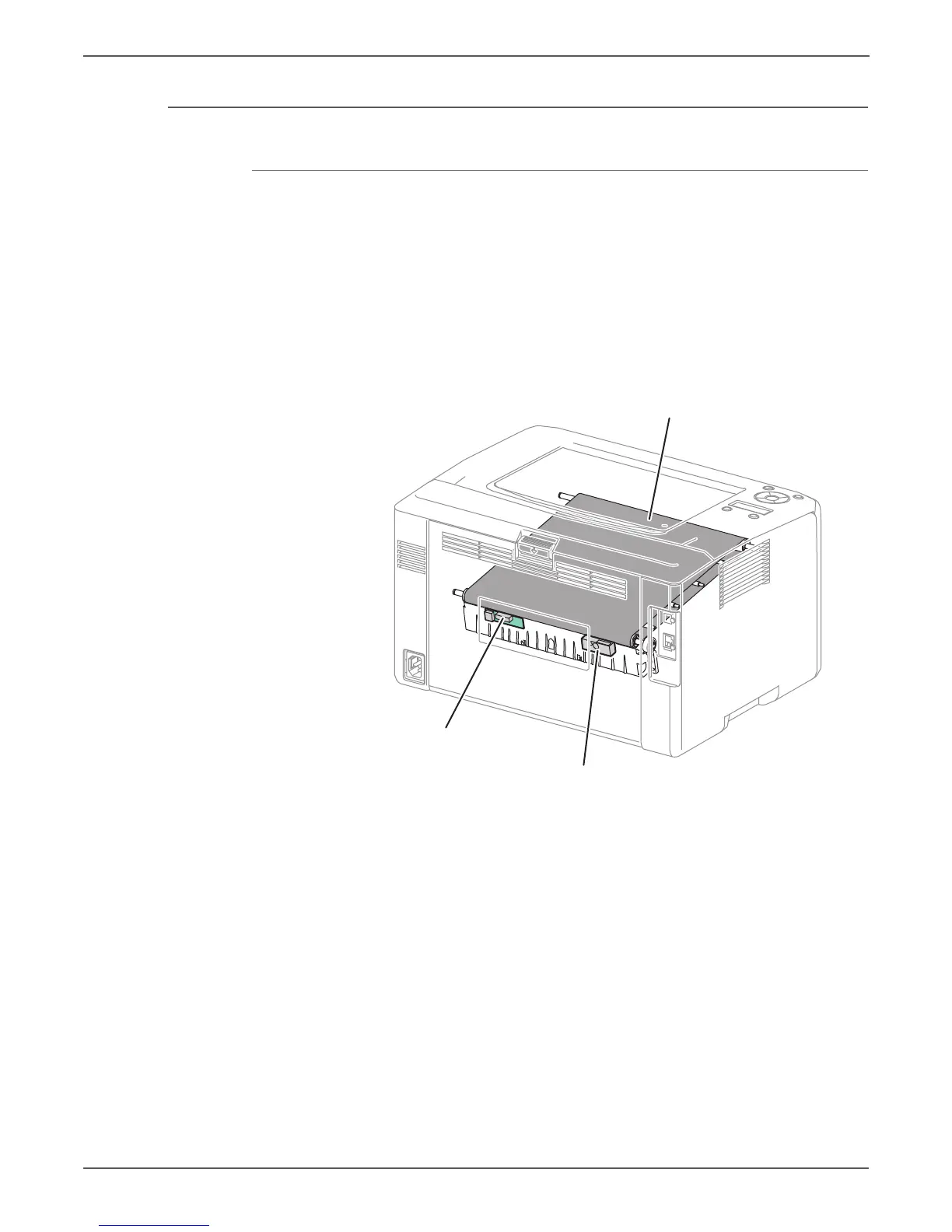

ADC Sensor
MOB Sensor
Transfer Belt
s6000-090
