Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-95
Service Parts Disassembly
Developer Drive Assembly
PL6.1.6
1. Remove the Main Paper Tray Cover (Phaser 6000/6010 page 8-7; WorkCentre
6015 MFP page 8-29).
2. Remove the Front Cover (Phaser 6000/6010 page 8-8; WorkCentre 6015 MFP
page 8-34).
3. Open the Rear Door.
4. Remove the Left Side Cover (Phaser 6000/6010 page 8-10; WorkCentre 6015
MFP page 8-29).
5. If present, remove the Wi-Fi Assembly (page 8-103).
6. Remove the Top Cover (Phaser 6000/6010 page 8-11; WorkCentre 6015 MFP
page 8-22).
7. This step varies depending on the model of the printer.

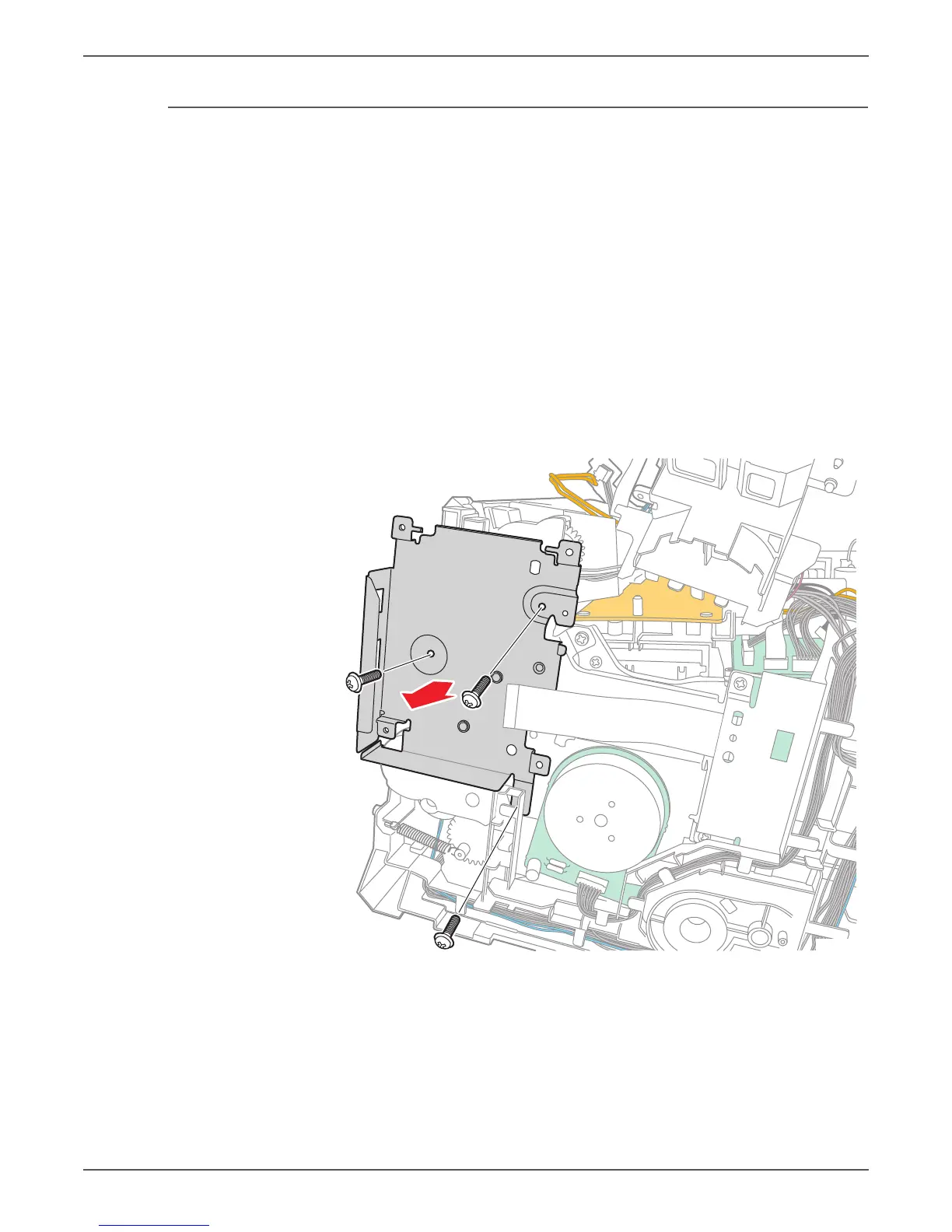

• Phaser 6000/6010: Remove the 3 screws (silver, M3, 6 mm), and remove
the IP Board Plate from the printer.
s6000-054
