8-94 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly

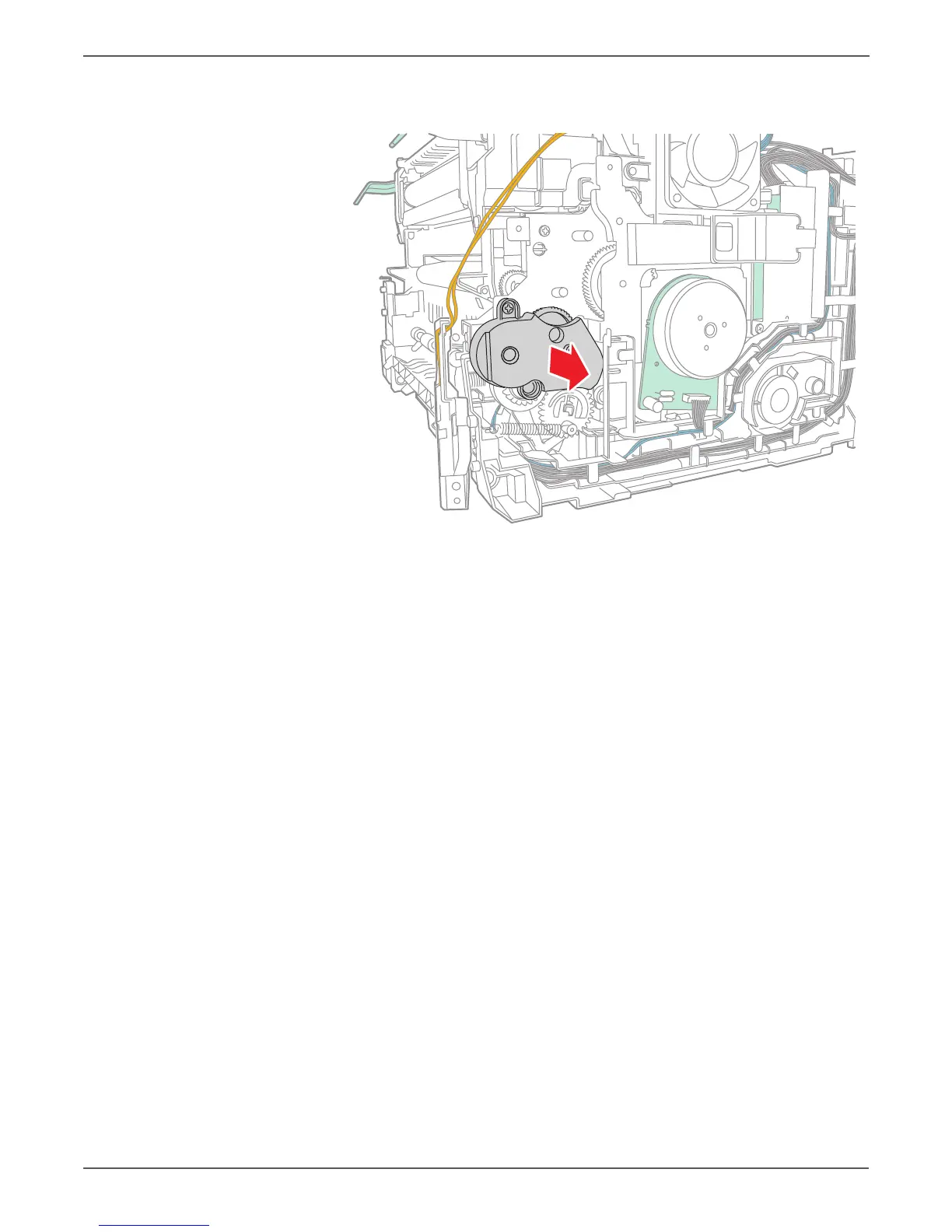

11. Remove 2 screws (silver, M3, 6 mm), and remove the Feed Drive Assembly
from the printer.
s6000-177
