Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-35
Service Parts Disassembly
IIT Procedures
WorkCentre 6015 MFP Scanner Assembly
PL8.1.1/PL9.1.1
Note
This procedures applies to the WorkCentre 6015 MFP.
1. Remove the Main Paper Tray Cover (page 8-29).
2. Remove the Output Tray Extension (page 8-31).
3. Open the Toner Door.
4. Remove the Front Cover (page 8-34).
5. Remove the Left Side Cover (page 8-29).

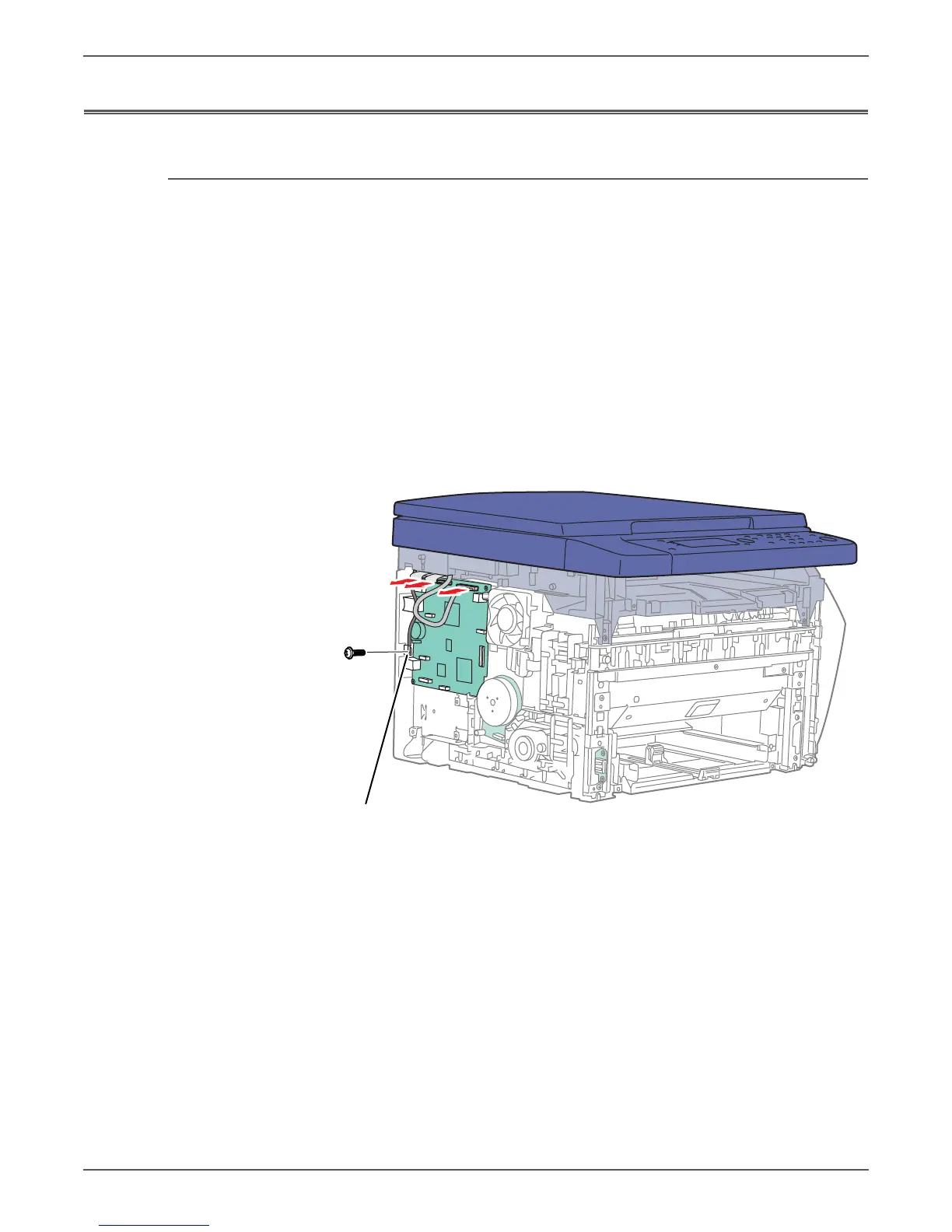

6. Disconnect P/J1, P/J6, and P/J16 on the IP Board. If the printer has an ADF,
remove 1 screw (silver, M3, 6 mm) to disconnect the ADF ground wire from the
chassis.
s6015-051
Grounding Wire and screw: ADF Only
