Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-29
Service Parts Disassembly

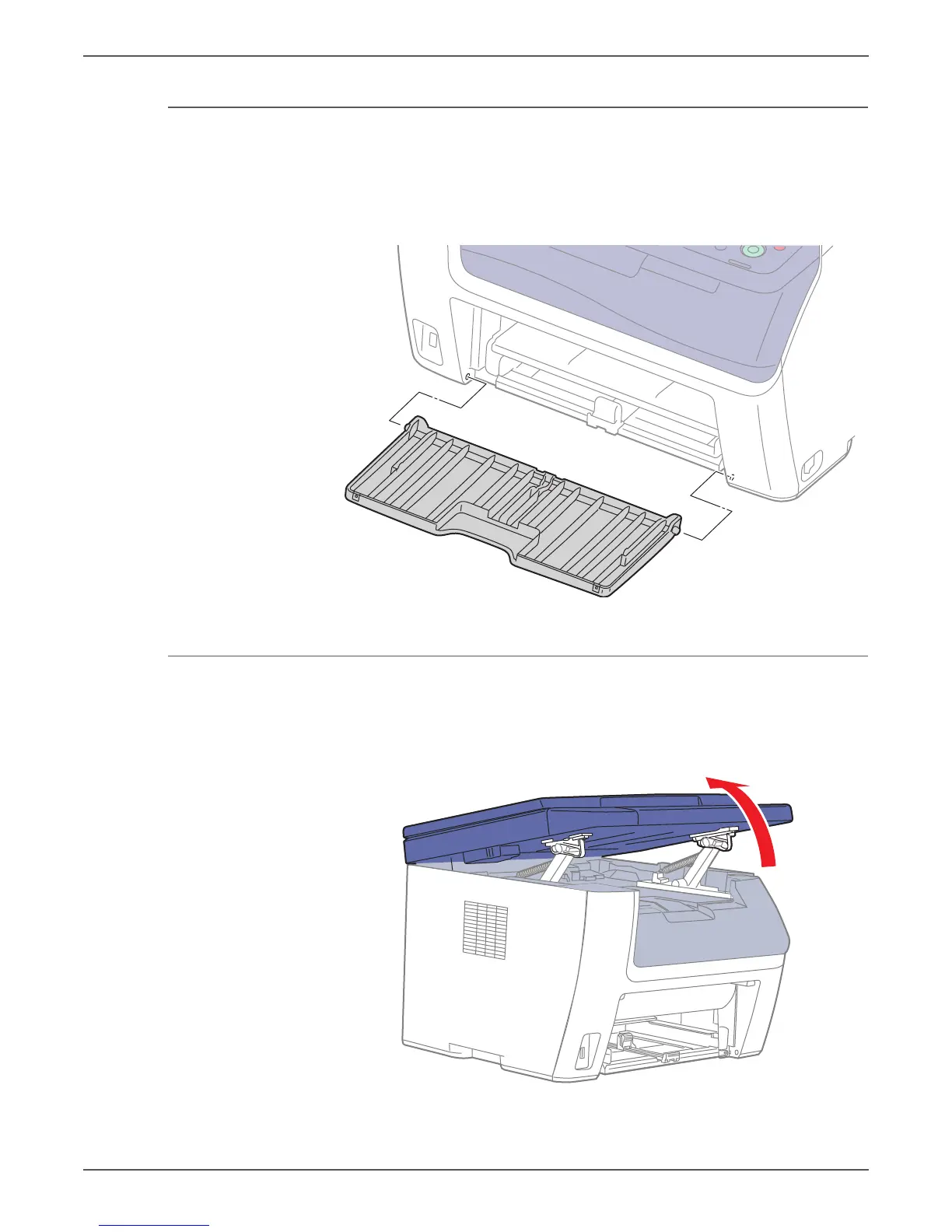

WorkCentre 6015 MFP Main Paper Tray Cover
PL1.1.17
1. Open the Main Paper Tray Cover.
2. Release the boss on the Main Paper Tray Cover from the hole in the Front
Cover, and then remove the Main Paper Tray Cover.
WorkCentre 6015 MFP Left Side Cover
PL1.1.21
1. Remove the Main Paper Tray Cover (page 8-29).
2. Lift the Scanner.
3. Remove the Output Tray Extension (page 8-31).
To Next Page
