Feeding from the Main Paper Tray

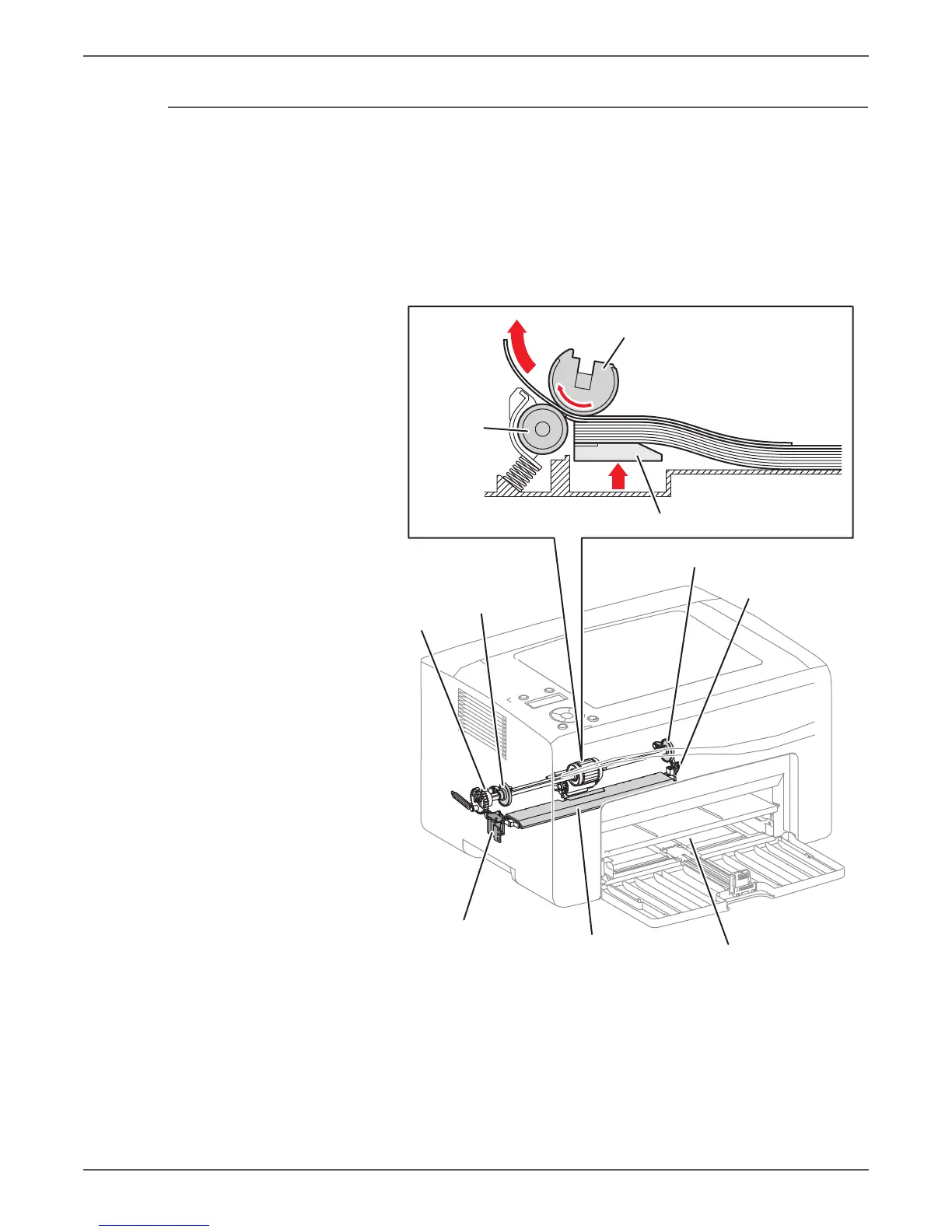

When sheet feeding from the Main Paper Tray starts, the Feed Roller rotates,
driven by the Main Drive Assembly and controlled by the Feed Solenoid, to feed
the sheet to the position where it is nipped between the Feed Roller and the
Separator Pad.
As the Feed Roller rotates, the Left Feed Roller Cam and Right Feed Roller Cam also
rotate to lift the bottom plate via the Left Follower Arm and Right Follower Arm to
the position for sheet feeding.
Feed Solenoid
Right Cam
Right Arm
Left Cam
Left Arm
Feed Roller
Separator
Roller
Bottom Plate Assembly
Bottom Plate Assembly
Multipurpose Feeder
s6000-081
