Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-55
Service Parts Disassembly

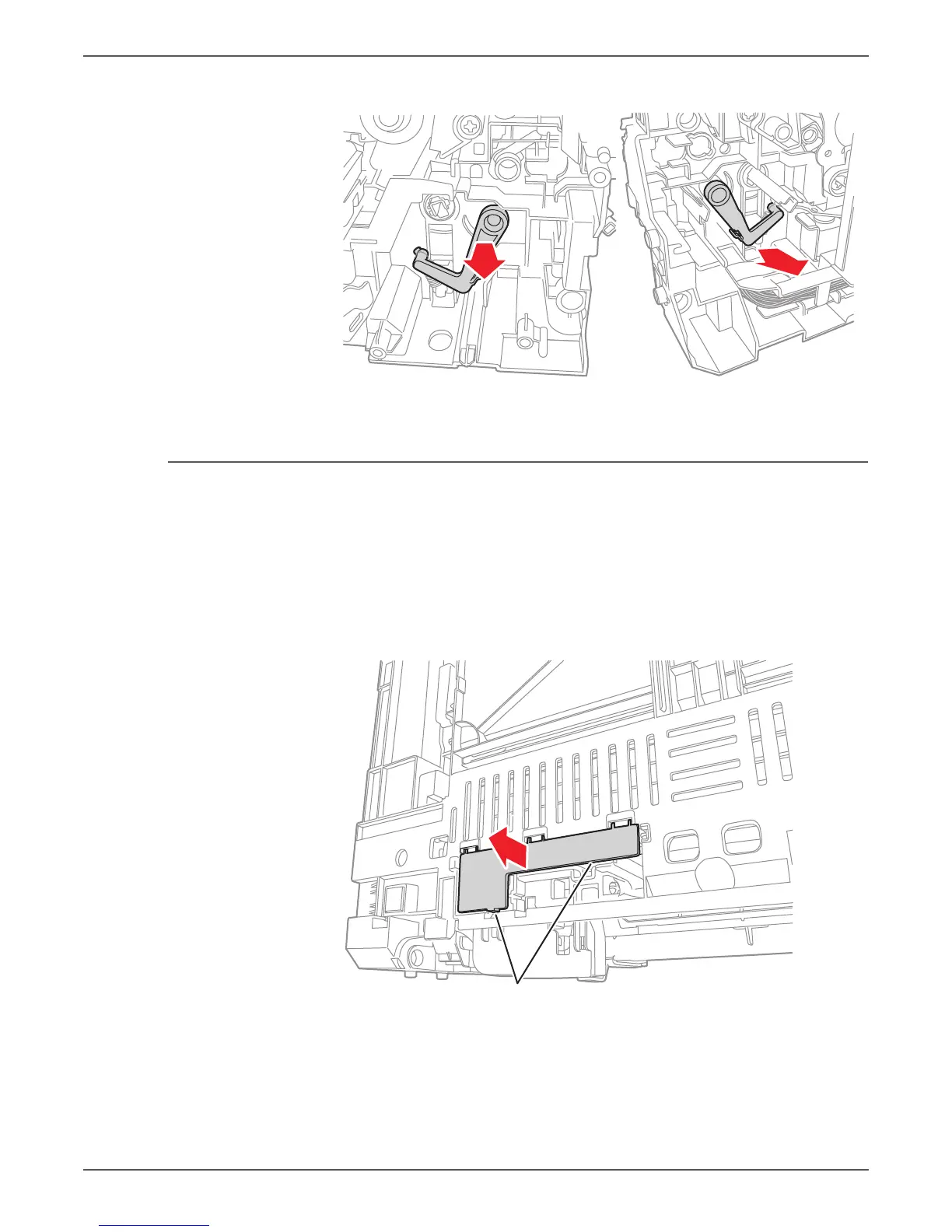

19. Remove the NF Springs.
No Paper Spring Actuator, No Paper Actuator, No Paper Cover
PL2.2.20, 2.2.21, 2.2.22
This procedure applies to the Phaser 6010N and WorkCentre 6015 MFPs.
1. Check that there are no cables attached to the rear of the printer, and then
turn the printer over and set it on the Rear Door.
2. Release the 2 hooks, and remove the No Paper Cover.
To Next Page
