8-54 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly

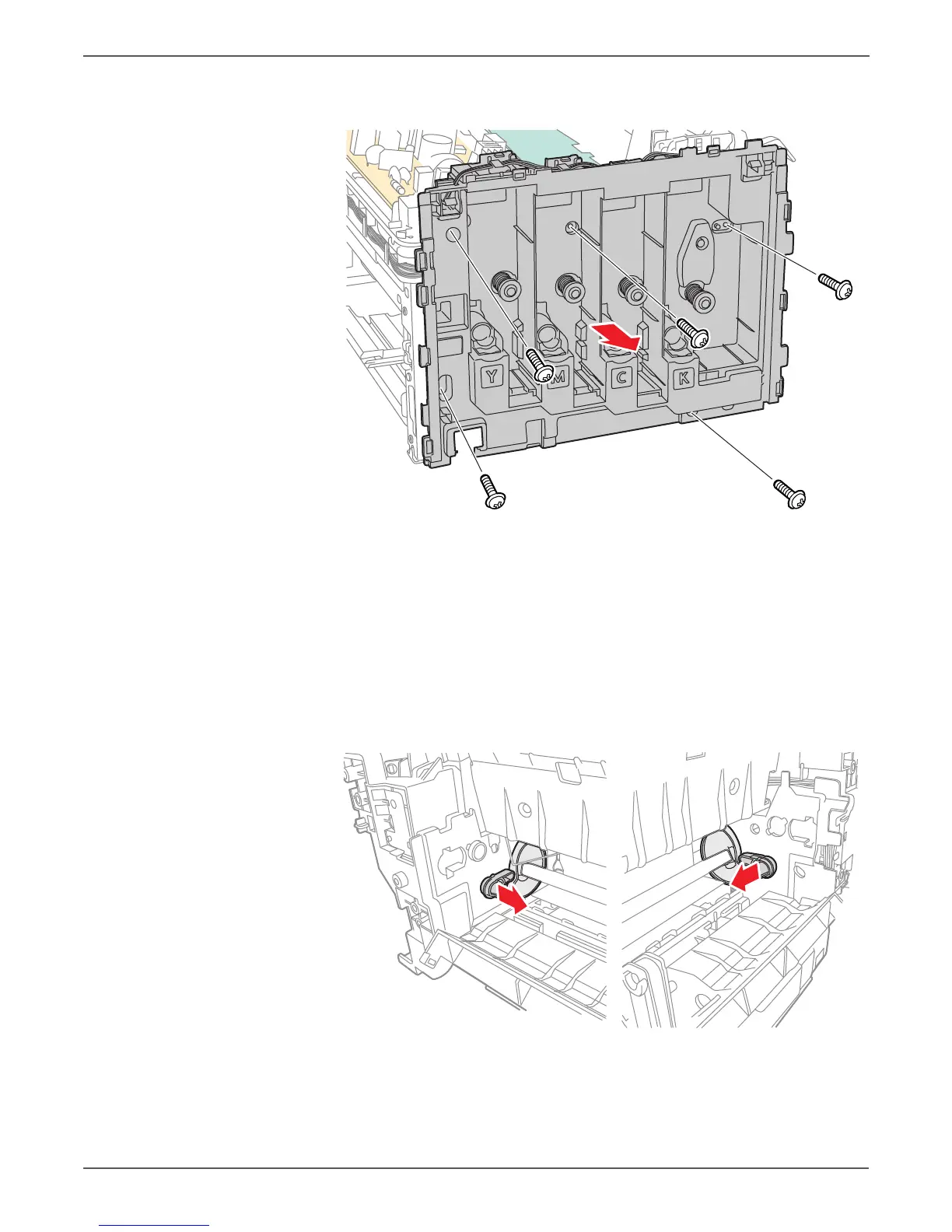

12. Remove the 5 screws (silver, tap, 8 mm), and remove the toner dispense frame
from the printer.
13. Remove the IP Board (page 8-114).
14. Remove the Feed Drive Assembly (page 8-91).
15. Remove the Registration Clutch (page 8-66).
16. Remove the Registration Roller (page 8-61).
17. Remove the Main Paper Tray Chute (page 8-64).
18. While releasing the hook of the Follower, push the Follower towards the inside
of the printer.
This step applies to both the left and right parts.
To Next Page
