Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-53
Service Parts Disassembly

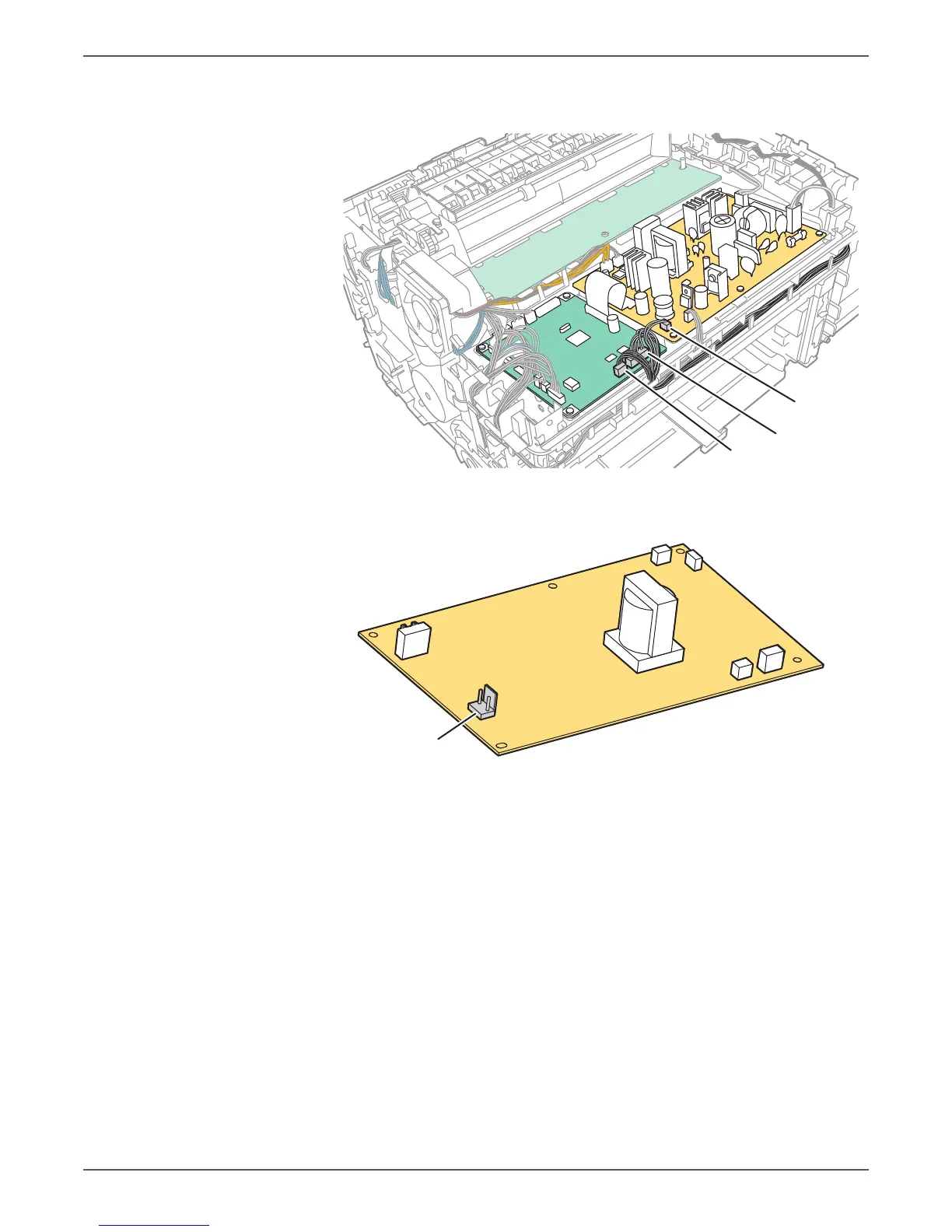

10. Disconnect P/J206 on the LVPS, and P/J13 and P/J20 on the MCU. Release the
harness from the harness guide.
11. Disconnect P/J201 on the LVPS and release the harness from the harness
guide.
s6000-069
P/J206
P/J13
P/J20
P/J201
s6000-117
