8-44 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly
Paper Guide
PL2.1.12
This procedure applies to the Phaser 6010N and the WorkCentre 6015 MFPs.
1. Open the Main Paper Tray Cover.
2. Remove the Bypass Tray Cover/Dust Tray Cover (page 8-43).
3. Turn the printer over and set it on the Rear Door.

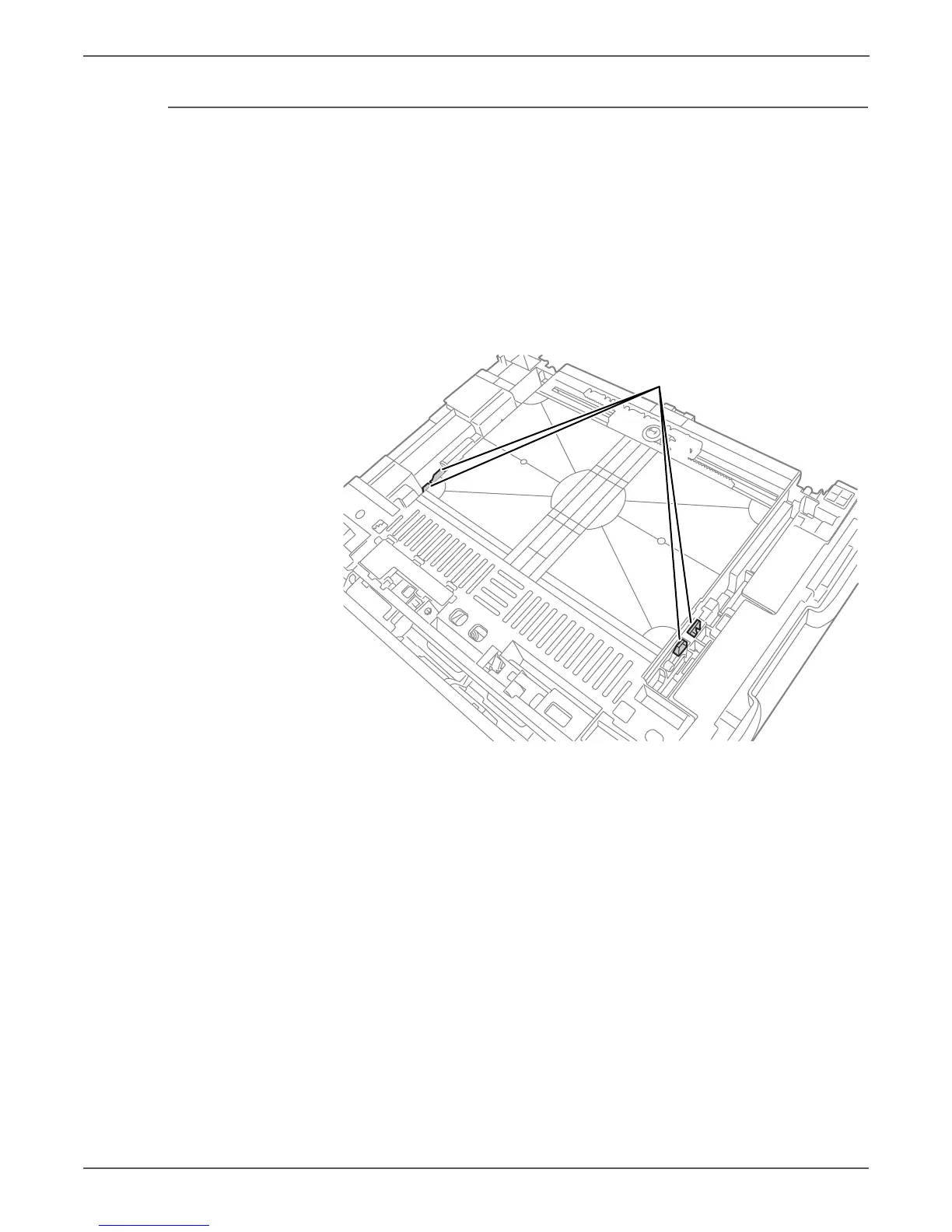

4. On the bottom of the printer, unhook the left side tab, and then push the boss
to release that side of the tray bypass base assembly.
5. Repeat step 4 for the other side, and then pull the assembly out of the printer.
To Next Page
