Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 9-31
Parts List

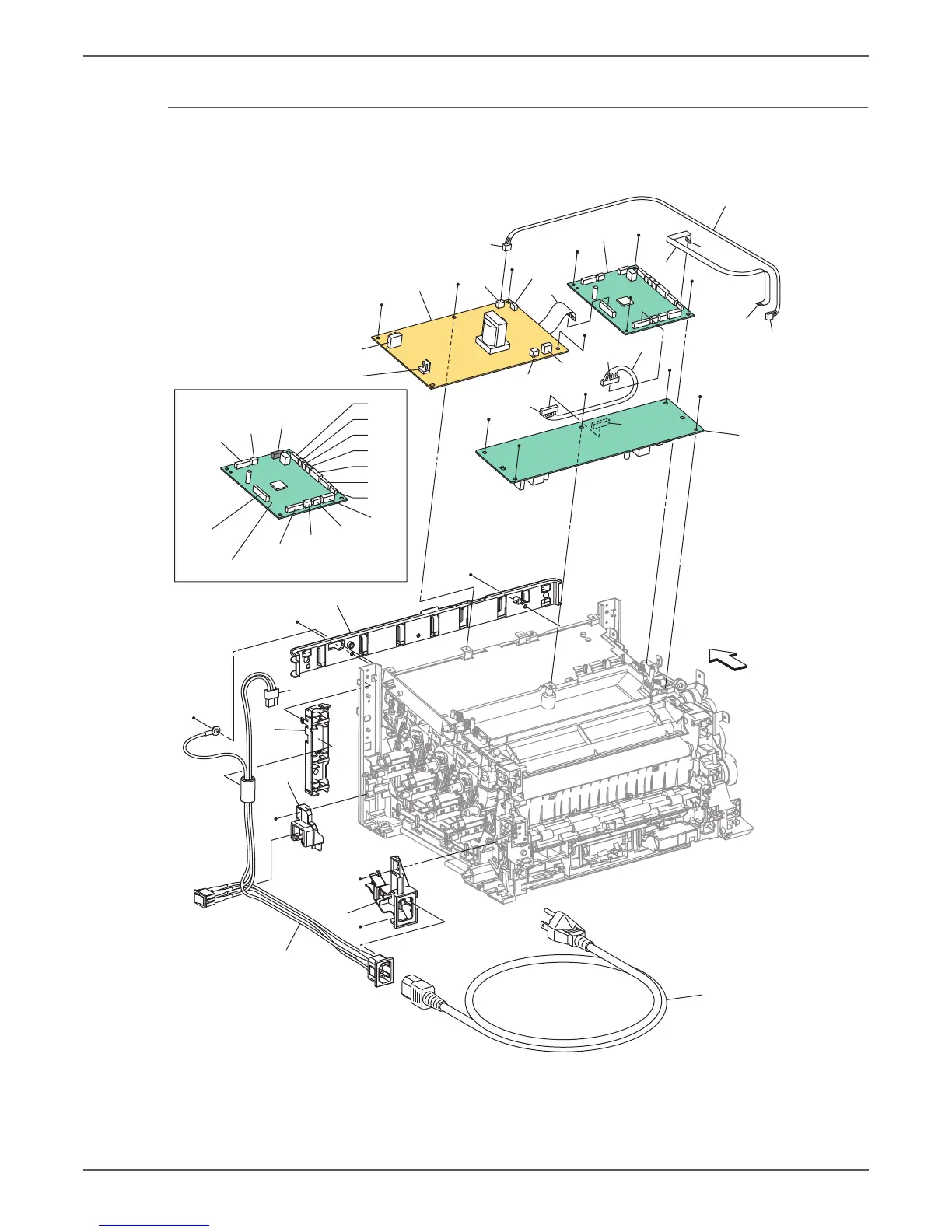

Parts List 7.2 Phaser 6000/6010 Electrical (2/2)
s6000-017
SM2
SM2
SM2
SM5
SM2
SM2
SM2
SM2
SM2
SM2
SM2
ST1
ST1
ST1
ST1
ST1
ST1
ST1
ST1
Front
(P16)
(P200)
(P202)
(P206)
(J17)
(P201)
(P10)
(P19)
(P25)
(P23)
(P14)
(P22)
(P17)
(P21)
(J200)
(P18)
(P205)
(P210)
(J210)
(J21)
(J22)
(J402)
(J401)
(P204)
(P26)
(P20)
(P13)
(P15)*
(P12)
[Ref PL7.2.2]
*: Not in used.
(J202)
1
2
11
12
13
3
5
6
7
8
9
10
