10-28 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP

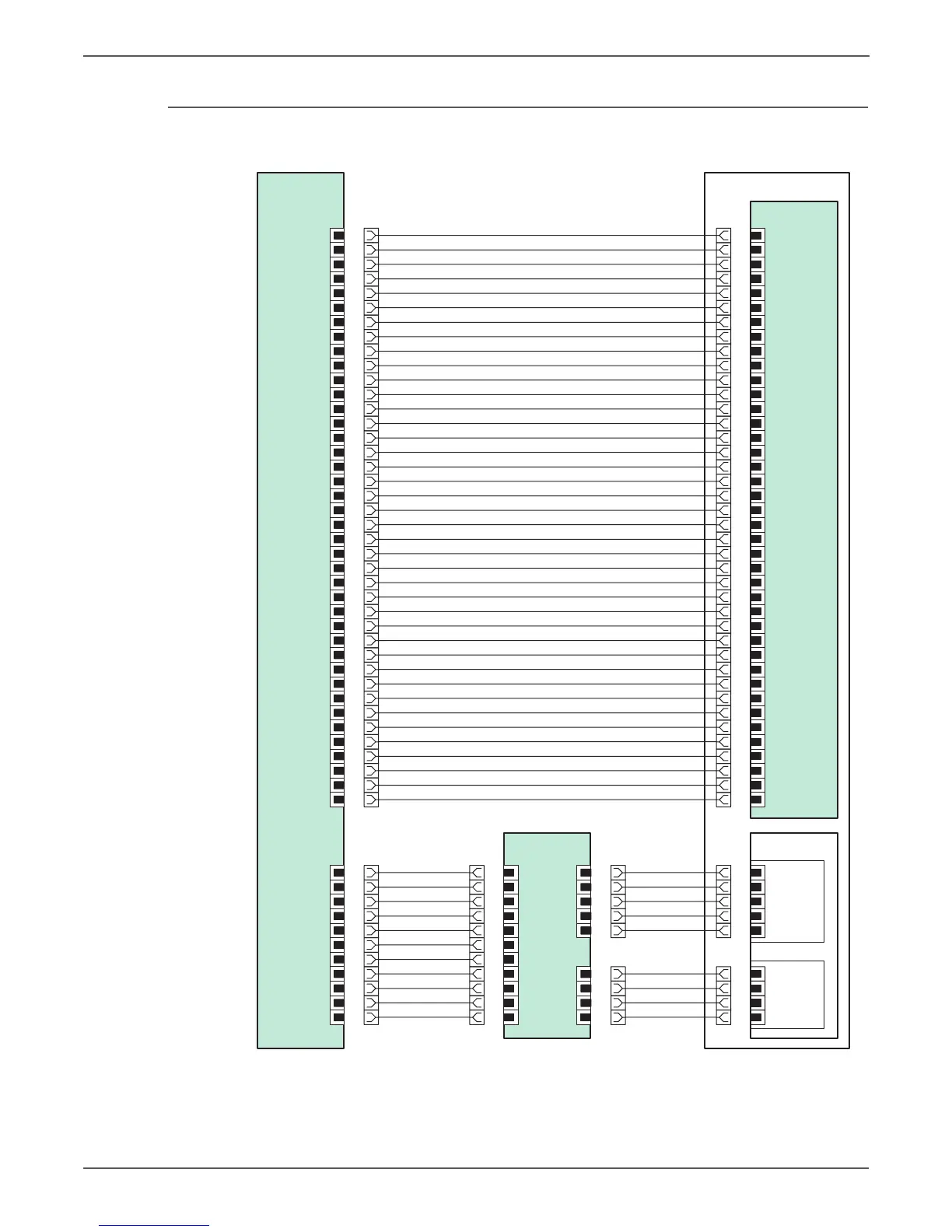

Wiring
WorkCentre 6015 MFP Xerographics
LED Driver
Board
PL7.1.5
(LPH Y/M/C/)
LPH Developer Belt
PL3.1.1
P/J xx*1
FFC LPH YMCK
SG
VCC 5V
RESET
SCL (SCK)
SDA (DI)
SG (DO)
Pull up 3.3V (CS)
VCC 5V
SG
VDATA 3 P
VDATA 3 N
VDATA 2 P
VDATA 2 N
VDATA 1 P
VDATA 1 N
VDATA 0 P
VDATA 0 N
VCC 5V
SG
VCLK P
VCLK N
SG
VCC 5V
HSYNC
MODE
READY
VCC 5V
SG
1.5V RETURN
1.5V RETURN
1.5V RETURN
1.5V RETURN
1.5V RETURN
1.5V RETURN
VCC 1.5V
VCC 1.5V
VCC 1.5V
VCC 1.5V
VCC 1.5V
VCC 1.5V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
P/J xx*2
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
MCU Board
PL7.2.2
P/J 1
FFC Assembly Light Biz
PL7.1.6
+3.3V
+5V
+5V
SG
SG
MOB 1
MOB 2
SDAT
SCLK
RESET
INT
1
2
3
4
5
6
7
8
9
10
11
P/J23
11
10
9
8
7
6
5
4
3
2
1
Belt
CTD
(ADC)
TR0*3
(MOB)
P/J14
SG
Vmon
LED-K
VOUT
+5V
LED
VOUT
SG
+5V
5
4
3
2
1
6
7
8
9
P/J140
P/J141
1
2
3
4
5
1
2
3
4
s6015-055
