8-78 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly
Connector Cover
PL4.1.12

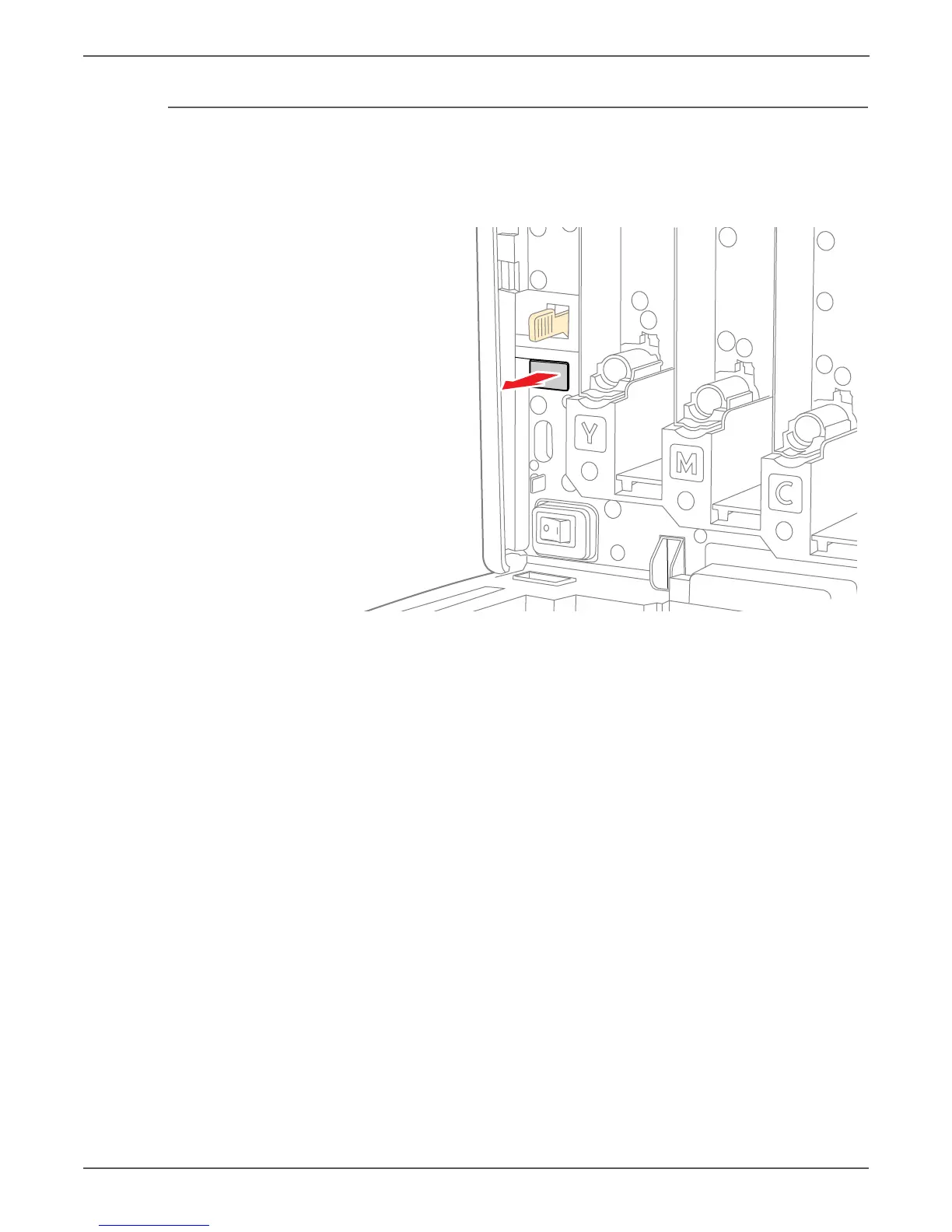

1. Open the Toner Door.
2. Release the hook, and remove the Connector Cover from the printer.
s6000-115
