Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-17
Service Parts Disassembly

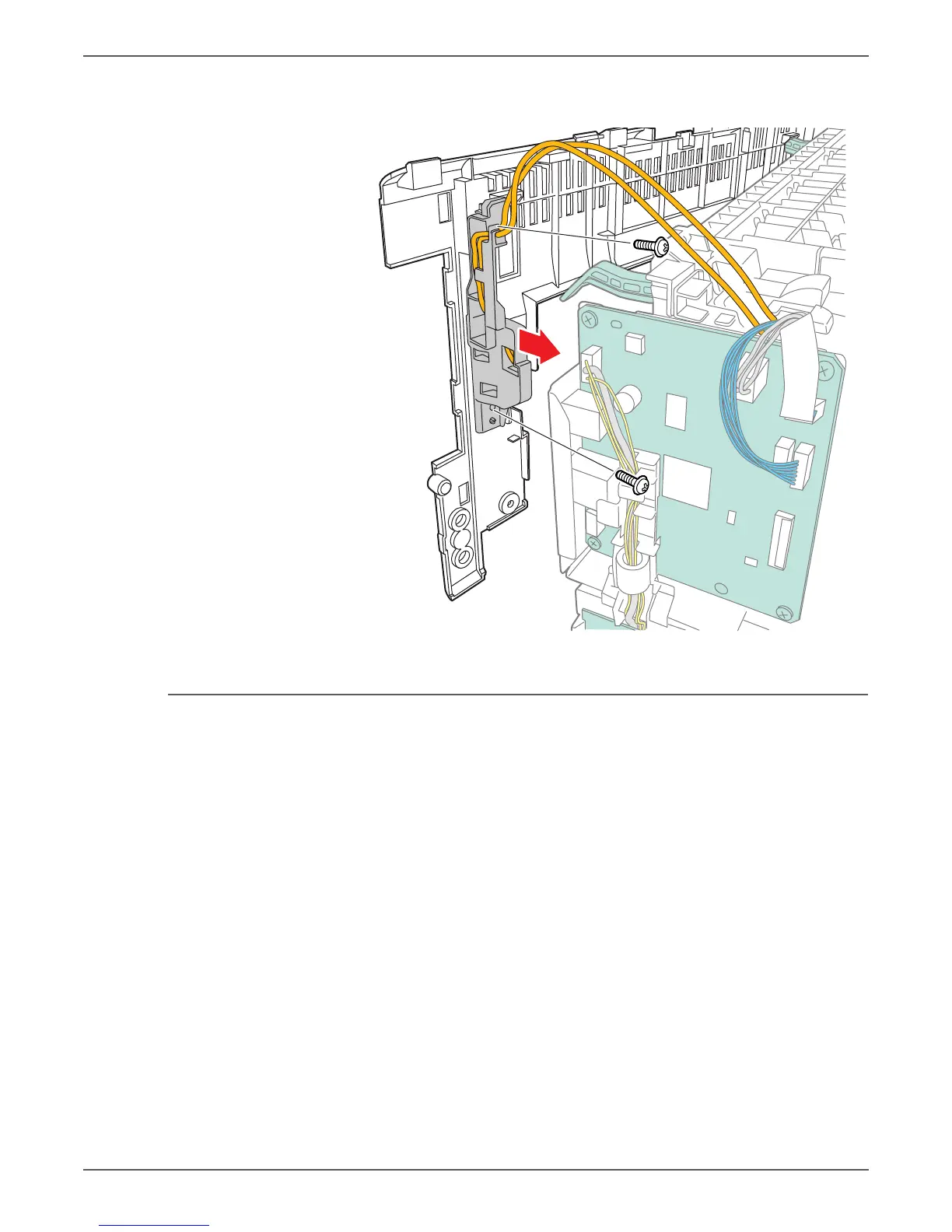

9. Remove 2 screws (silver, tap, 8mm) that secure the Rear Cover Interlock Switch
to the Rear Cover.
Phaser 6000/6010 Rear Cover Interlock Switch
PL1.1.12
1. Remove the Main Paper Tray Cover (page 8-7).
2. Remove the Front Cover (page 8-8).
3. Open the Rear Door.
4. Remove the Left Side Cover (page 8-10).
5. Remove the Top Cover (page 8-11).
6. Remove the Rear Cover (page 8-15).
s6000-034
