Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 4-29
Troubleshooting
Registration Clutch
The Registration Roller rotates when the Main Motor (FULL) and the Regi Clutch
tests are executed simultaneously.
1. Enter Service Diagnostics (page 4-11).
2. Open the Rear Door.
3. Close the Rear Door Interlock Switch.
4. Run the Main Motor Full and Registration Clutch tests: scroll to Engine Diag >
Motor Test > Main Motor Full and press OK, then scroll down to Regi Clutch
and press OK.
5. Check that the Registration Roller rotates.
6. Press the Cancel button to stop the Regi Clutch test.
7. Use the Down Arrow to scroll to the motor test and press Cancel to stop the
motor test.
8. Open the Rear Door Interlock Switch.
9. Close the Rear Door.

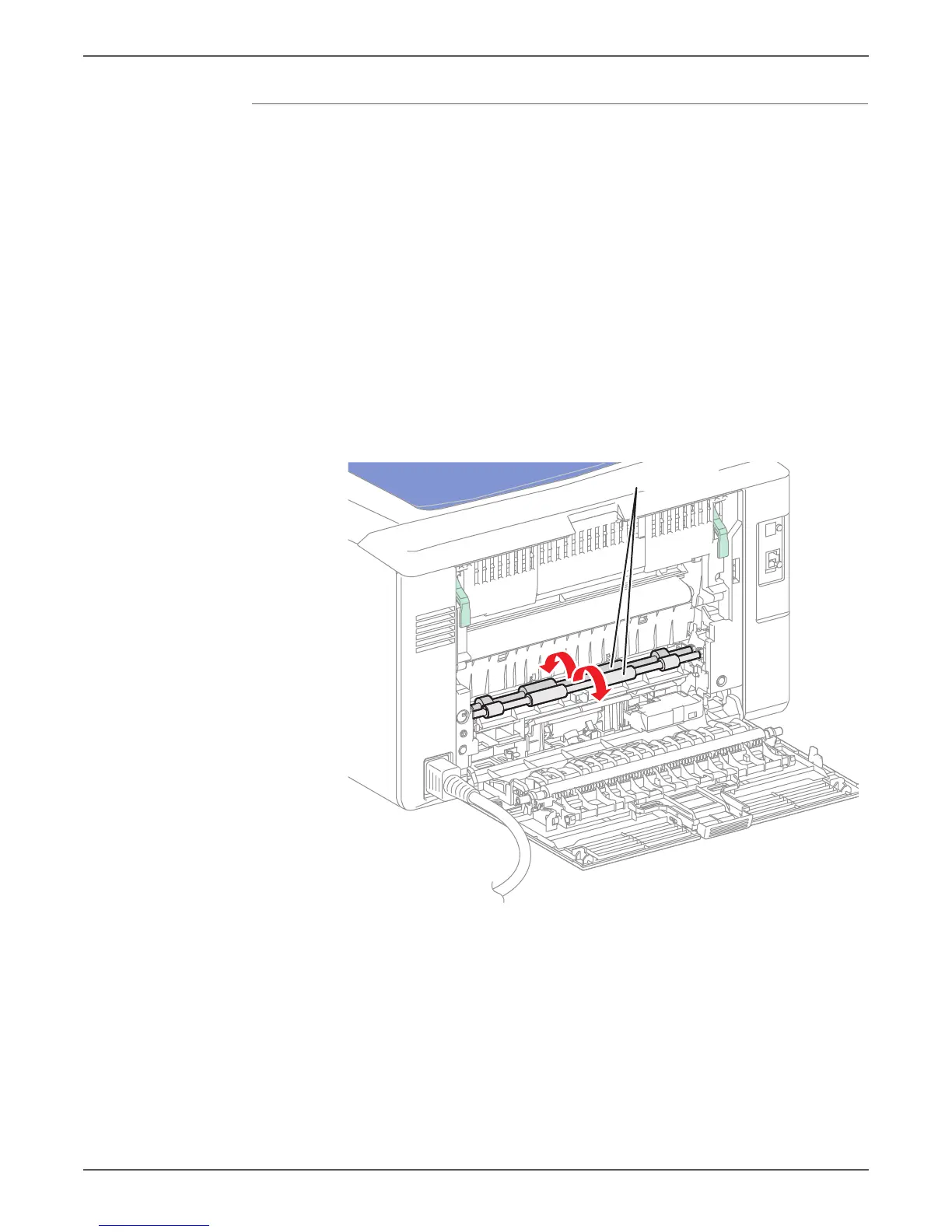

Registration Roller
s6000-149
