Xerox Phaser 6000 Service Manual

8-80 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly
Fuser
PL5.1.1
Warning
Allow the Fuser to cool before performing this procedure.
1. Remove the Main Paper Tray Cover (Phaser 6000/6010 page 8-7; WorkCentre
6015 MFP page 8-29).
2. Remove the Front Cover (Phaser 6000/6010 page 8-8; WorkCentre 6015 MFP
page 8-34).
3. Open the Rear Door.
4. Remove the Left Side Cover (Phaser 6000/6010 page 8-10; WorkCentre 6015
MFP page 8-29).
5. If present, remove the Wi-Fi Assembly (page 8-103).
6. Remove the Top Cover (Phaser 6000/6010 page 8-11; WorkCentre 6015 MFP
page 8-22).
7. Remove the Rear Cover (Phaser 6000/6010 page 8-15; WorkCentre 6015 MFP
page 8-24).

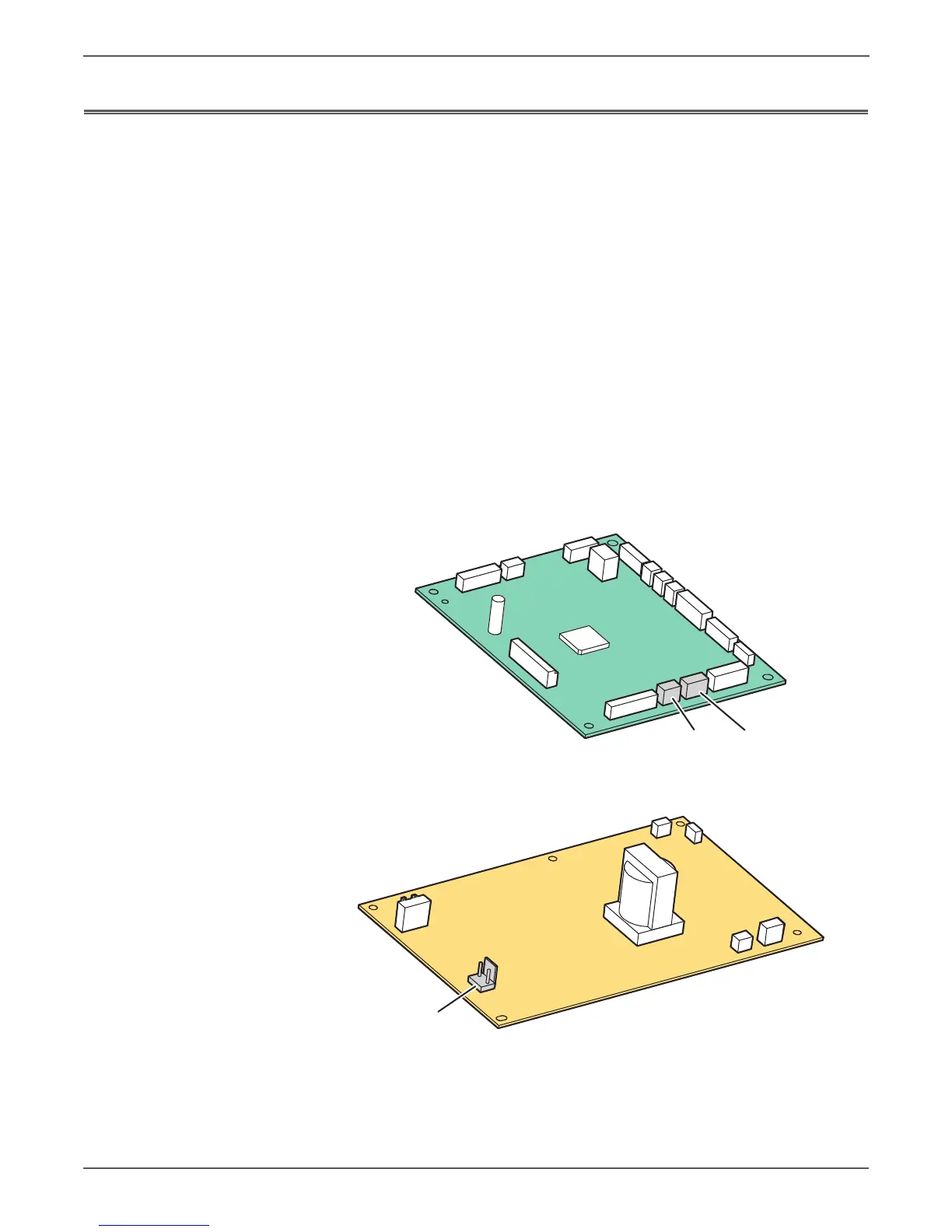

8. Disconnect P/J18 and P/J26 from the MCU Board, and release the harness
from the harness guide.
9. Disconnect P/J201 on the LVPS, and release the harness from the harness
guide.
s6000-116
P/J18 P/J26
P/J201
s6000-117
