4-24 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Troubleshooting
Registration Sensor
1. Enter Service Diagnostics (page 4-11).
2. Open the Rear Door.
3. Run the Registration Sensor test: Engine Diag > Sensor Test > Regi Sensor.
4. Operate the actuator to check sensor function.
5. Confirm the number shown on the display increases every time the actuator is
operated.
6. Press the Cancel button to stop the test.
7. Close the Rear Door.

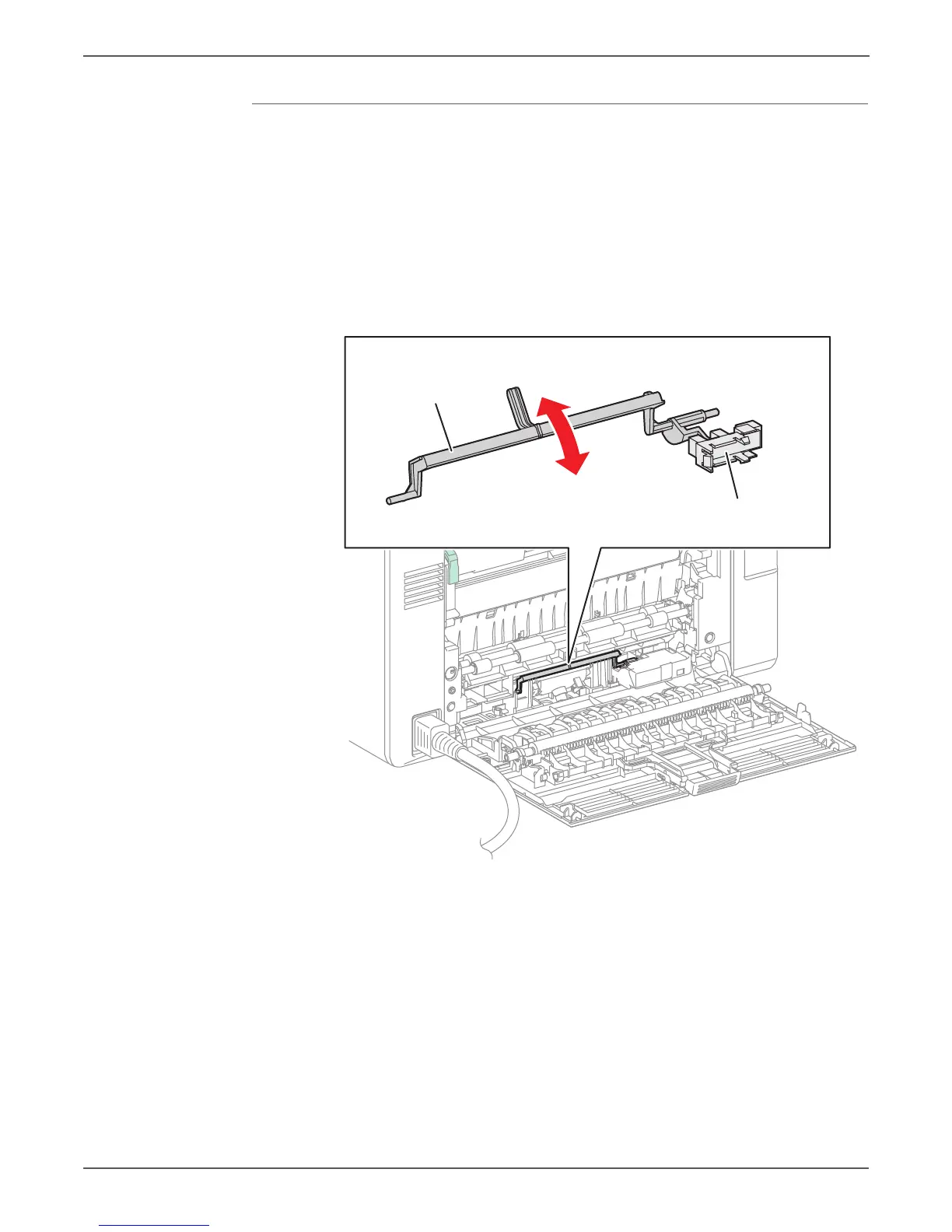

s6000-144
Registration Sensor
Actuator
