Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-119
Service Parts Disassembly

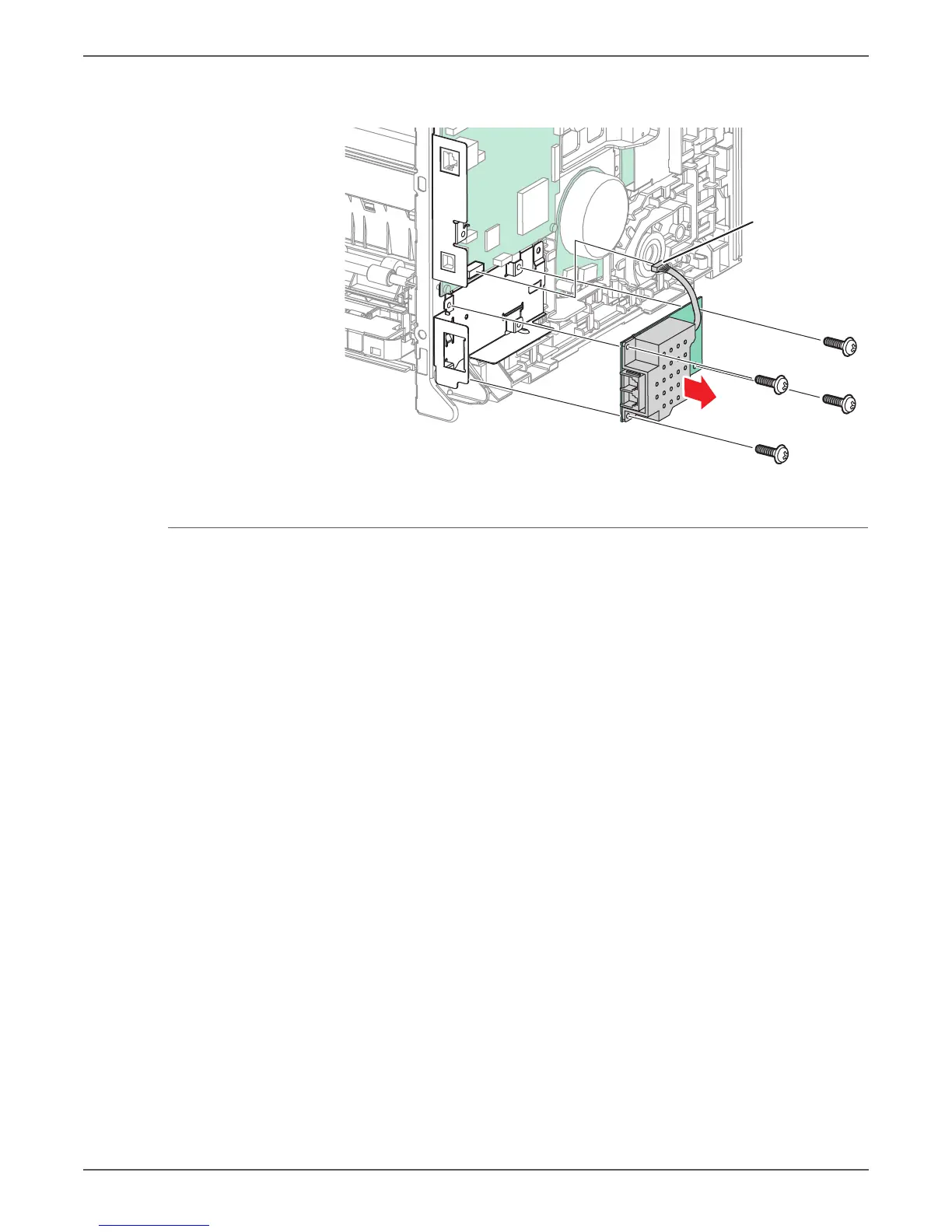

7. Disengage P/J2 on the IP Board, and remove 4 screws (silver, M3, 6 mm) to
remove the Fax Board.
LVPS
PL7.2.1A~B
1. Remove the Main Paper Tray Cover (Phaser 6000/6010 page 8-7; WorkCentre
6015 MFP page 8-29).
2. Remove the Front Cover (Phaser 6000/6010 page 8-8; WorkCentre 6015 MFP
page 8-34).
3. Open the Rear Door.
4. Remove the Left Side Cover (Phaser 6000/6010 page 8-10; WorkCentre 6015
MFP page 8-29).
5. If present, remove the Wi-Fi Assembly (page 8-103).
6. Remove the Top Cover (Phaser 6000/6010 page 8-11; WorkCentre 6015 MFP
page 8-22).
SP2
s6015-030
