Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-11
Service Parts Disassembly
Phaser 6000/6010 Top Cover Assembly
PL1.1.1A, PL1.1.1B, PL1.1.4A, PL1.1.4B

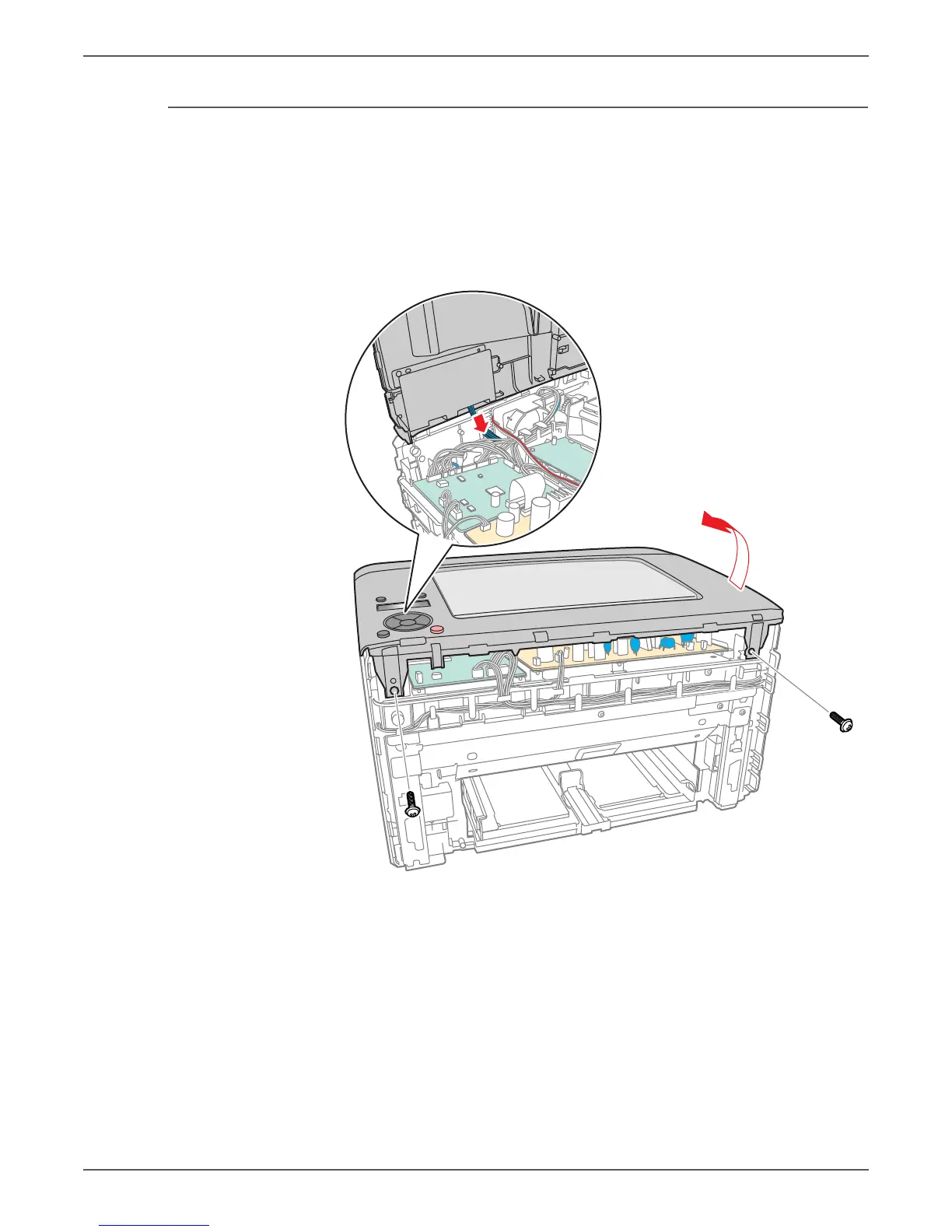

1. Remove the Main Paper Tray Cover (page 8-7).
2. Remove the Front Cover (page 8-8).
3. Remove the 2 screws (silver, M3, 6 mm).
4. Release the front tabs, and carefully lift the Top Cover from the right and
disconnect P/J220 on the Control Panel to remove the Top Cover.
5. If replacing the Front Top Cover, remove the Top Rear Cover (see page 8-21).
s6000-029
