8-10 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly

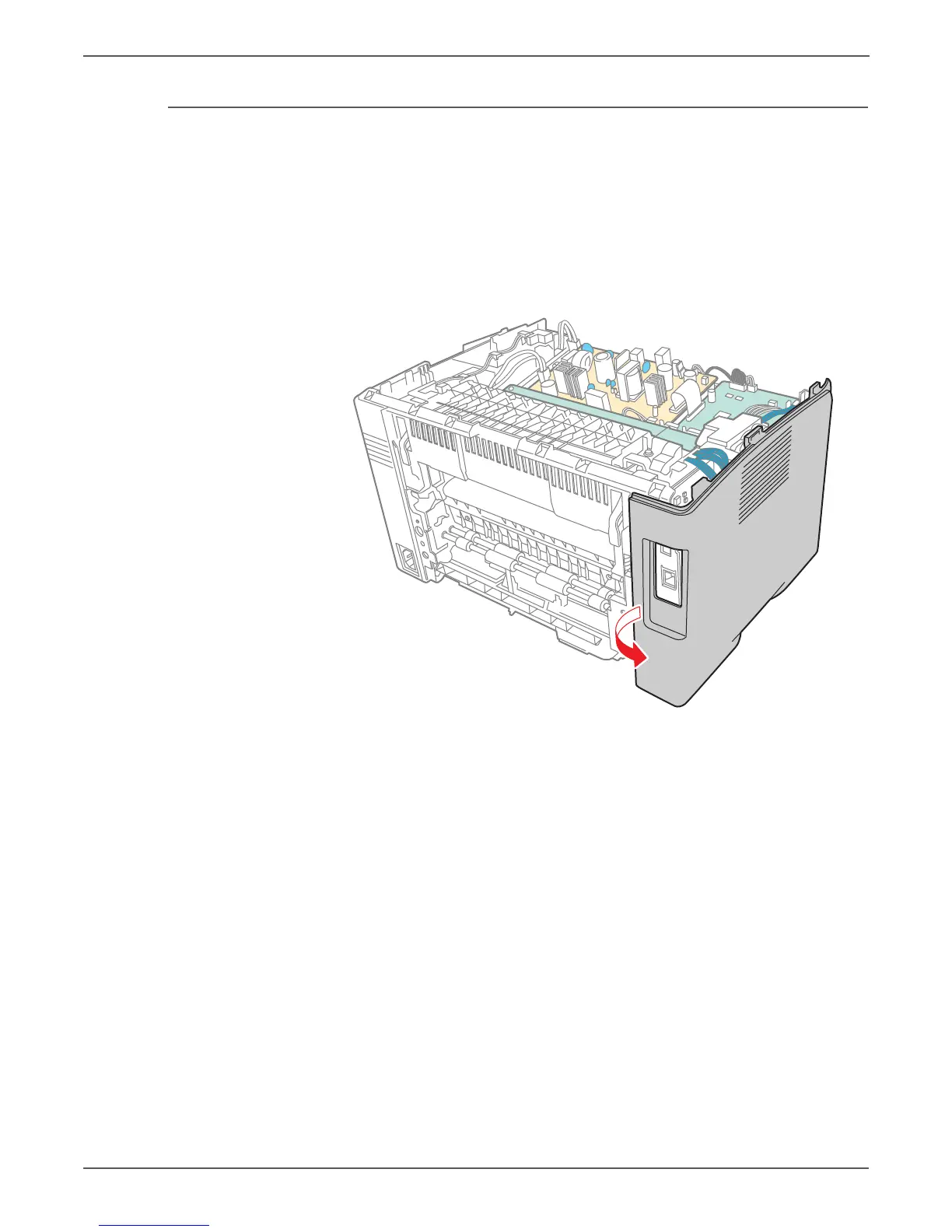

Phaser 6000/6010 Left Side Cover
PL1.1.21
1. Remove the Top Cover (page 8-11).
2. Open the Rear Door.
3. Release the 2 hooks on the lower side of the Left Side Cover.
4. Remove the Left Side Cover by releasing the hooks attached on the bottom of
the Left Side Cover.
Replacement Note
Engage the hooks on the rear side of the printer, and then engage the hooks
on the bottom of the Left Side Cover.
s6000-028
