Xerox Phaser 6000 Service Manual

8-42 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly
Paper Feeder
Main Tray Extension
PL2.1.7

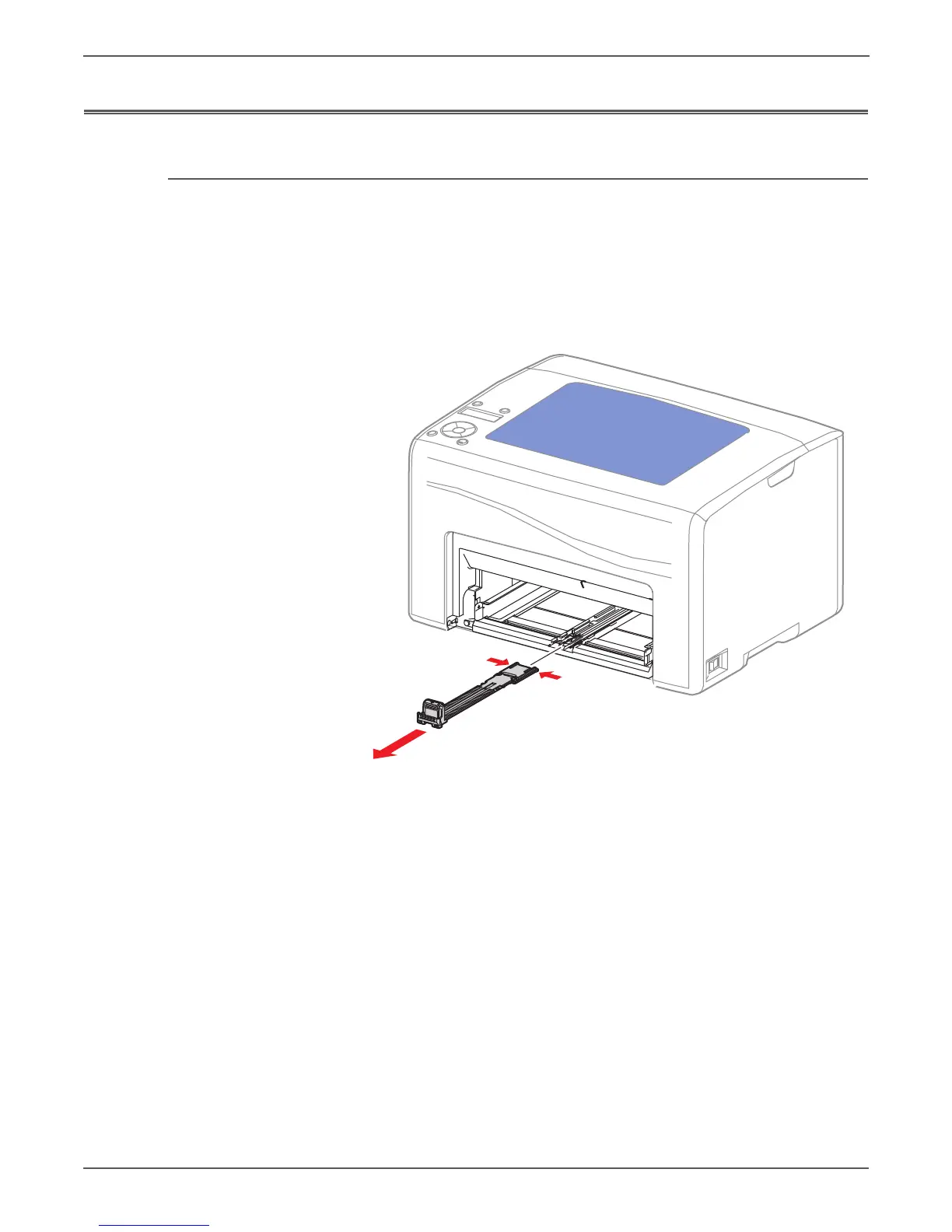

1. Remove the Main Paper Tray Cover (Phaser 6000/6010 page 8-7; WorkCentre
6015 MFP page 8-29).
2. Remove the Bypass Tray Cover/Dust Cover (page 8-43).
3. Slide the Main Tray Extension to the front side until it stops.
Use 2 small screwdrivers to release the 2 hooks on the Main Tray Extension.
s6000-005
