Xerox Phaser 6000 Service Manual

4-60 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Troubleshooting
WorkCentre 6015 MFP Fax/Scanner Diagnostic Test Procedures
Procedures for testing each IIT component using Service Diagnostics.
Enter FAX Scanner Diagnostic
1. Turn the printer Off.
2. Press and hold the Up and Down Arrow simultaneously and turn the printer
On.
3. Release the buttons when CE Mode Please wait appears on the display.
4. Press OK at Fax/Scanner.
Information
Select this menu item to display the value of the scan counter.

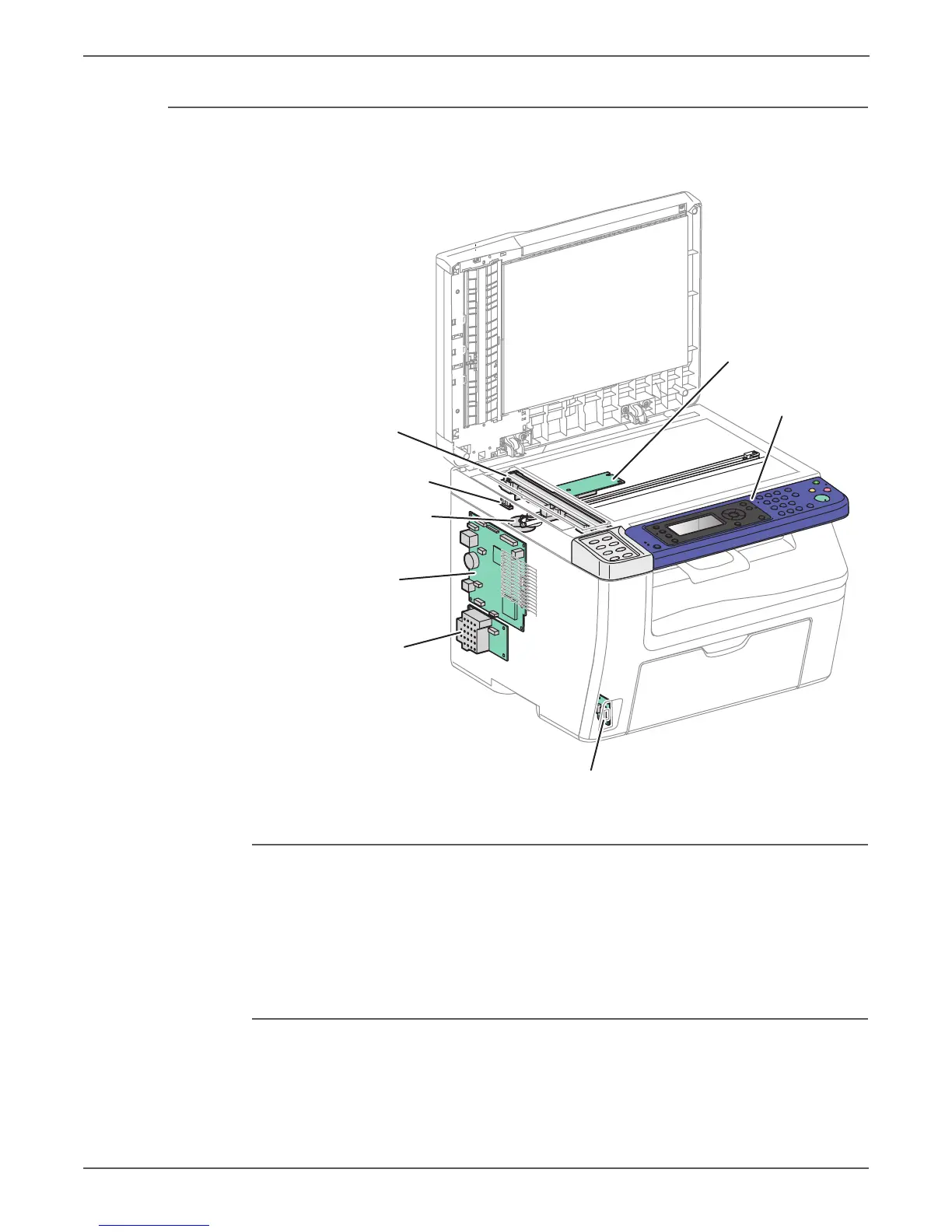

s6015-022
Control Panel
Assembly
Fax Board
IP Board
Carriage Motor
Scanner Board
Scanner Home
Position Sensor
Carriage
Assembly
USB Board
