Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-77
Theory of Operation

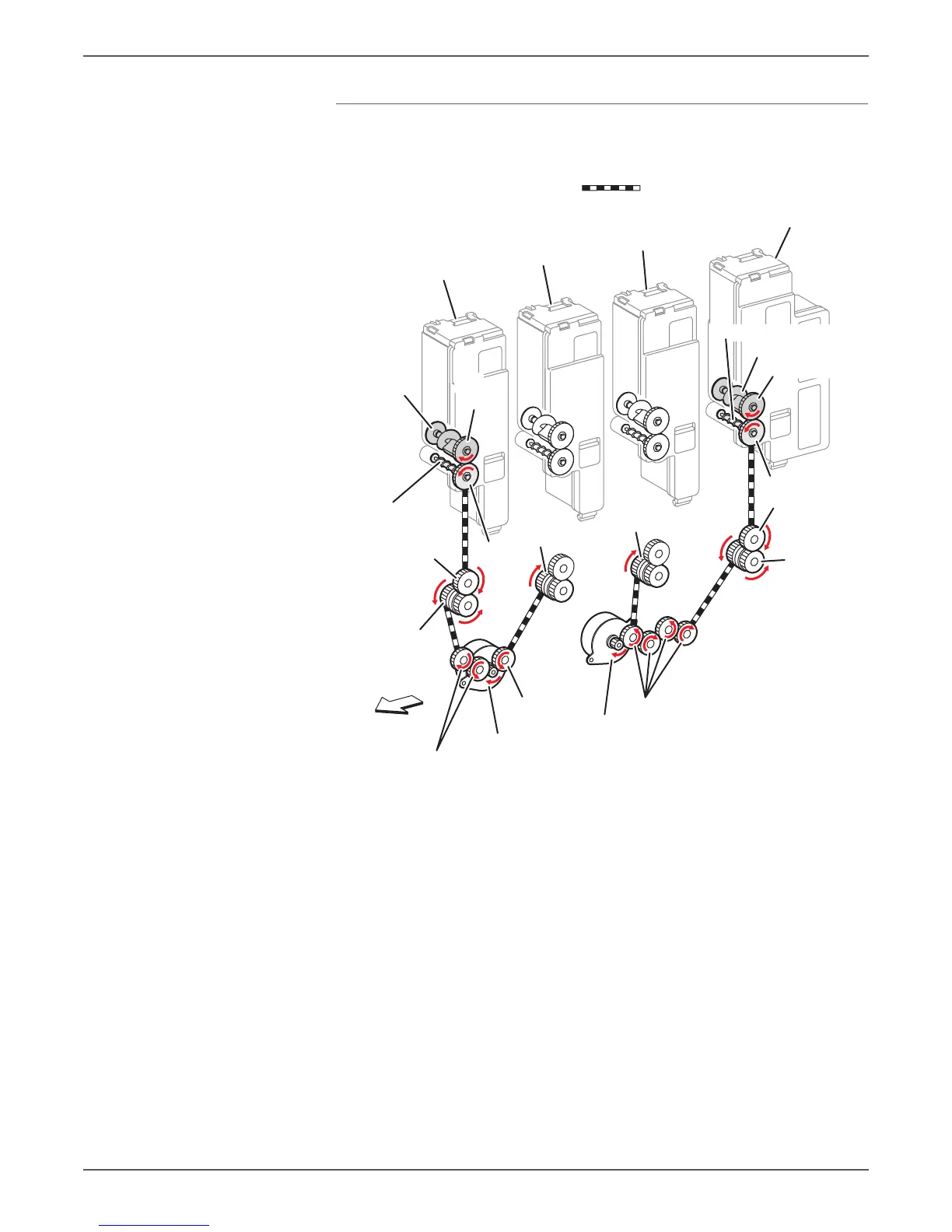

Toner Dispenser Y and K Drive Components
Front
: Indicates The Engagement Of Gears
[ Name Of Moving Parts ]
Toner
Cartridge (Y)
Toner
Cartridge (M)
Toner
Cartridge (C)
Toner
Cartridge (K)
[ Dispense
Auger TN (Y) ]
[ Auger Dispense Tn (K) ]
[ Cartridge
Auger (Y) ]
[ Auger Ctrg (K) ]
Auger
Gear (Y)
Auger
Gear (Y)
Auger Gear (K)
Auger Gear (K)
Idler Gear 34
Idler Gear 34
Idler Gear 34
Dispense Motor (Y), (M)
Dispense Motor (C), (K)
Oneway
Clutch (Y)
Oneway
Clutch (M)
Oneway
Clutch (C)
Oneway
Clutch (K)
Idler Gear 23 (K)
Idler Gear 23 (Y)
s6000-134
